Cooling and FF Fabrication for Energy Volta River Authority Project
Steel Fabrication for Tank

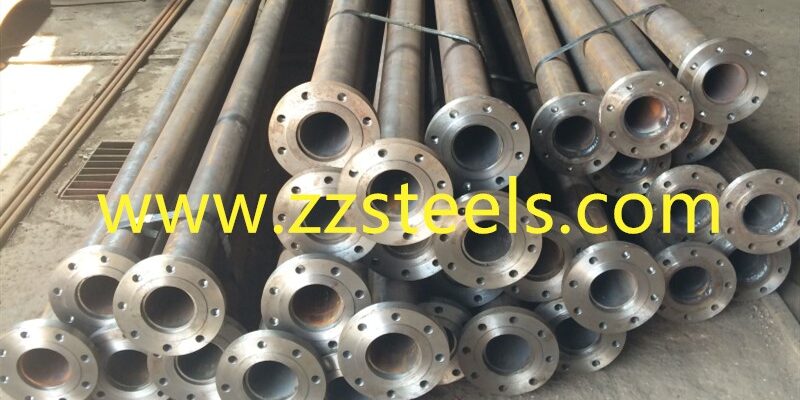

Steel fabrication for the foam and cooling water lines for the tanks
Description
Country: Ghana
Year: 2014
Project: Energy Volta River Authority Project
While we shipped steel pre-fabrication for oil tank and water tank. Client is happy with our steel fabrication. They attach with drawings for the foam and cooling water lines for the tanks at Takoradi. And ask we to supply and fabrication of the 4” and 2” lines as detailed in the drawings.
– All the materials should be Hot dip galvanized.
– All the flanges are #150 Slip on.
– There are 02 tanks of Diameter 22.28 meters
– There 02 tanks of Diameter 25.46 meters.
– The list of materials illustrated in the drawings is meant for 01 tank only.
Welding flange onto pipe end
Steel Fabrication for Tank
Here are the order details.
| 25.46M | DESCRIPTION | MATERIAL | QTY | REMARKS |
| 1 | 2″ DIA FLANGE ANSI 150 S.O Flange | ASTM A 105 | 72 | HOT DIA GALVANIZED |
| 2 | 2″ DIA GASKET ANSI 150 R.F. 3 THK | ASBESTOS FREE | 40 | |
| 3 | STUD BOLTS 5/8″ DIA X 90 + N.2 NUTS | ASTM A 193 Gr. B7 | 200 | HOT DIA GALVANIZED |
| ASTM A 194 Gr. 2H | ||||
| 4 | 4″ DIA GASKET ANSI 150 R.F. 3 THK | ASBESTOS FREE | 10 | |
| 5 | 4″ DIA FLANGE ANSI 150 S.O Flange | ASTM A 105 | 18 | HOT DIA GALVANIZED |
| 6 | 4″ x 2″ DIA ECCENTRIC REDUCER SCH. STD | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 7 | 2″ CROSS TEE 3.91 THIK. | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 8 | 2″ DIA ELBOW 3.91 THK. AT 99? | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 9 | 2″ DIA TEE 3.91 THK. | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 10 | 2″ DIA BLIND FLANGE ANSI 150 | ASTM A 105 | 8 | HOT DIA GALVANIZED |
| 13 | HALF COUPLING 1/2″ DIA 3000 NPT | ASTM A 105 | 106 | HOT DIA GALVANIZED |
| 14 | U-BOLT M12 WITH N.4 NUTS | S235JR | 18 | TO SUPPORT 4″ DIA PIPE |
| 15 | U-BOLT M10 WITH N.4 NUTS | S235JR | 38 | TO SUPPORT 2″ DIA PIPE |
| 16 | 2″ PIPE SCH.STD L = 6000 (EXTRA QUANTITY | ASTM A 106 Gr.B | 1 | HOT DIP GALVANIZED |
| 17 | 2″ DIA ELBOW 3.91 THK. 90 (EXTRA QUANTITY | ASTM A 234 Gr.WPB | 4 | |
| A1 | 4″ PIPE SCH.STD L = 3230 | ASTM A 106 Gr.B | 8 | HOT DIP GALVANIZED |
| A2 | 4″ + 2″ PIPES CONECTED WITH ITEM 6 SCH.STD L = 3230 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A3 | 2″ + 2″ PIPES CONECTED WITH ITEM 7 SCH.STD | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A4 | 2″ PIPE SCH.STD L = 2734 – ROUNDED TO R = 13055 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A5 | 2″ PIPE SCH.STD L = 2734 – ROUNDED TO R = 13055 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A6 | 2″ PIPE SCH.STD L = 5468 – ROUNDED TO R = 13055 | ASTM A 106 Gr.B | 6 | HOT DIP GALVANIZED |
| A7 | 2″ PIPE SCH.STD L = 5468 – ROUNDED TO R = 13055 | ASTM A 106 Gr.B | 6 | HOT DIP GALVANIZED |
| A8 | 2″ + 2″ PIPES CONECTED WITH ITEM 8 SCH.STD | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A9 | 2″ PIPE SCH.STD L = 2900 | ASTM A 106 Gr.B | 6 | HOT DIP GALVANIZED |
| A10 | 2″ + 2″ PIPES CONECTED WITH ITEM 9 SCH.STD | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A11 | 2″ PIPE SCH.STD L = 3045 – ROUNDED TO R = 2546 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A12 | 2″ PIPE SCH.STD L = 3045- ROUNDED TO R = 2546 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| B1 | 4″ PIPE SCH.STD L = 3800 | ASTM A 106 Gr.B | 8 | HOT DIP GALVANIZED |
| B2 | 4″ DIA FLANGE ANSI 150 S.O Flange | ASTM A 105 | 18 | |
| B3 | 4″ DIA GASKET ANSI 150 R.F. 3 THK | ASBESTOS FREE | 10 | REFER TO DETAIL “B” |
| B4 | STUD BOLTS 5/8″ DIA X 90 + N.2 NUTS | ASTM A 193 Gr. B7 | 40 | HOT DIP GALVANIZED |
| ASTM A 194 Gr. 2H | ||||
| 22.28M | DESCRIPTION | MATERIAL | QTY | REMARKS |
| 1 | 2″ DIA FLANGE ANSI 150 S.O Flange | ASTM A 105 | 64 | HOT DIA GALVANIZED |
| 2 | 2″ DIA GASKET ANSI 150 R.F. 3 THK | ASBESTOS FREE | 36 | |
| 3 | STUD BOLTS 5/8″ DIA X 90 + N.2 NUTS | ASTM A 193 Gr. B7 | 188 | HOT DIA GALVANIZED |
| ASTM A 194 Gr. 2H | ||||
| 4 | 4″ DIA GASKET ANSI 150 R.F. 3 THK | ASBESTOS FREE | 10 | |
| 5 | 4″ DIA FLANGE ANSI 150 S.O Flange | ASTM A 105 | 18 | HOT DIA GALVANIZED |
| 6 | 4″ x 2″ DIA ECCENTRIC REDUCER SCH. STD | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 7 | 2″ CROSS TEE 3.91 THIK. | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 8 | 2″ DIA ELBOW 3.91 THK. AT 99° | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 9 | 2″ DIA TEE 3.91 THK. | ASTM A 234 Gr.WPB | 2 | HOT DIA GALVANIZED |
| 10 | 2″ DIA BLIND FLANGE ANSI 150 | ASTM A 105 | 8 | HOT DIA GALVANIZED |
| 13 | HALF COUPLING 1/2″ DIA 3000 NPT | ASTM A 105 | 88 | |
| 14 | U-BOLT M12 WITH N.4 NUTS | S235JR UNI EN10025 | 18 | TO SUPPORT 4″ DIA PIPE |
| 15 | U-BOLT M10 WITH N.4 NUTS | S235JR UNI EN10025 | 38 | TO SUPPORT 2″ DIA PIPE |
| 16 | 2″ PIPE SCH.STD L = 6000 (EXTRA QUANTITY | ASTM A 106 Gr.B | 1 | HOT DIP GALVANIZED |
| 17 | 2″ DIA ELBOW 3.91 THK. 90 (EXTRA QUANTITY | ASTM A 234 Gr.WPB | 4 | |
| A1 | 4″ PIPE SCH.STD L = 3230 | ASTM A 106 Gr.B | 8 | HOT DIP GALVANIZED |
| A2 | 4″ + 2″ PIPES CONECTED WITH ITEM 6 SCH.STD L = 3230 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A3 | 2″ + 2″ PIPES CONECTED WITH ITEM 7 SCH.STD | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A4 | 2″ PIPE SCH.STD L = 5540 – ROUNDED TO R = 11465 | ASTM A 106 Gr.B | 6 | HOT DIP GALVANIZED |
| A5 | 2″ PIPE SCH.STD L = 5540 – ROUNDED TO R = 11465 | ASTM A 106 Gr.B | 6 | HOT DIP GALVANIZED |
| A6 | 2″ + 2″ PIPES CONECTED WITH ITEM 8 SCH.STD | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A7 | 2″ PIPE SCH.STD L = 2900 | ASTM A 106 Gr.B | 6 | HOT DIP GALVANIZED |
| A8 | 2″ + 2″ PIPES CONECTED WITH ITEM 9 SCH.STD | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A9 | 2″ PIPE SCH.STD L = 2644 – ROUNDED TO R = 2228 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| A10 | 2″ PIPE SCH.STD L = 2644 – ROUNDED TO R = 2228 | ASTM A 106 Gr.B | 2 | HOT DIP GALVANIZED |
| B1 | 4″ PIPE SCH.STD L = 3800 | ASTM A 106 Gr.B | 8 | HOT DIP GALVANIZED |
| B2 | 4″ DIA FLANGE ANSI 150 S.O Flange | ASTM A 105 | 18 | |
| B3 | 4″ DIA GASKET ANSI 150 R.F. 3 THK | ASBESTOS FREE | 10 | REFER TO DETAIL “B” |
| B4 | STUD BOLTS 5/8″ DIA X 90 + N.2 NUTS | ASTM A 193 Gr. B7 | 40 | HOT DIP GALVANIZED |
| ASTM A 194 Gr. 2H |
