Weldolet Carbon Steel 8″ X 2″
Weldolet BW MSS SP-97
High quality branch outlet fittings supplier Zizi offers MSS SP-97 8” x 2” Weldolet Carbon Steel ASME A 350 LF 2 for Australia. We also stock carbon steel sockolet, weldolet and threadolet in various dimensions.
Weldolet is a forged pipe fittings that used to supply a smaller branches for main pipes. It has larger dimension ranges among branch outlet fittings. If the conditions permit (such as in good welding condition) usually it is the first choice.
Zizi is ISO certified manufacturer and obtains many certificates such as BV, ABS and DNV, we will offer MTC for every products.
Weldolet Specification
| Standard | ASME/ANSI B16.11, MSS-SP-97 Weldolet Carbon Steel |
|---|---|
| Branch Diameter Range | 1/8 to 24 inch / DN6-DN600 |
| Pressure Rate | STD, XS, SCH160 |
| Stainless Steel Weldolet | ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Carbon Steel Weldolet | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Alloy Steel Weldolet | ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Duplex & Super Duplex Steel Weldolet | ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950 |

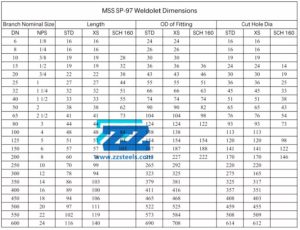

Weldolet Size Table
How to Calculate Carbon Steel Weldolet Weight

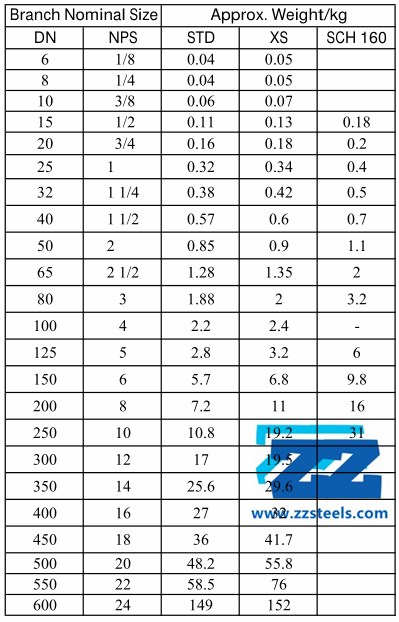

Weldolet Carbon Steel Weight

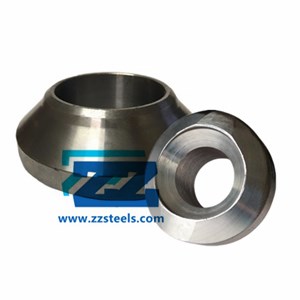

Weldolet Carbon Steel
Standard: MSS SP-97
Diameter: 8” x 2”
Wall Thickness: STD
Material: ASTM A350 LF2
Difference Between a Weldolet & Sockolet
- Weldolet is buttweld connection while sockolet is socket welded.
- Diameter range. Weldolet has larger diameter ranges than sockolet according to MSS SP-97.
- Thickness of weldolet is schedule STD, XS and Sch160, while sockolet is available in class 3000, 62000 and 9000.

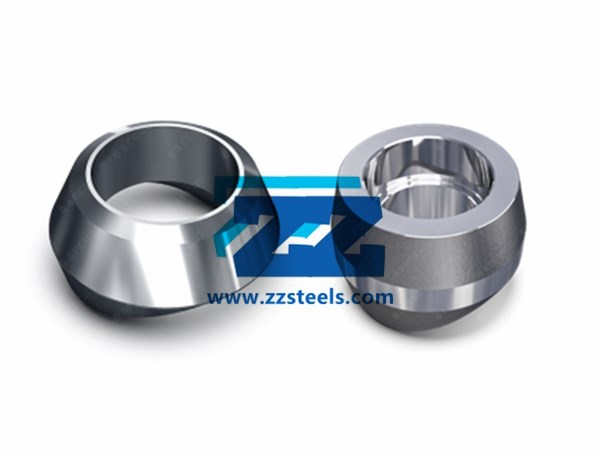

Weldolet VS Sockolet
Mainly Used Branch Outlet Pipe Fittings
- Weldolt
- Sockolet
- Threadolet
- Latrolet
- Nipolet
- Flange Olet
ASTM A350 LF2 Properties
Chemical Composition, %
| C | Mn | Si | S | P | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.3 | 0.6-1.35 | 0.15-0.3 | 0.04 | 0.035 | 0.3 | 0.4 |
Mechanical Properties
| Ultimate Tensile Strength | 0.2% Yield Strength | Elongation |
|---|---|---|
| 485-655 | 250 | 22 |
