TPCO S235JR Seamless Pipe

S235JR Seamless Pipe

We are manufacturer of Pipe and providing TPCO S235JR Seamless Pipe 20″ X 1.25″ X 12M BE for Nigeria. ZIZI ENGINEERING supply high quality seamless and welded pipes in different materials and dimensions, we also offer designated brand pipes such as TPCO Pipes and other famous brand steel pipes. S234JR seamless pipe is easy to weld and bend, it is largely used in low pressure liquid transportation such as water, gas and oil. To ensure the quality of our products, we take stric control to the manufacture and inspection, test the dimensions and materials of pipes. TPCO is a well-known steel pipe brand in China. Its seamless pipes for petroleum are very famous, and we have maintained cooperation with them.

TPCO Pipe Feature

Size: 508 x 31mm x 12m

Brand: TPCO

Surface: Painting

End: Bevel and Cap

Material: S235JR

S235JR Material

GR S235JR is a structural grade in EN10219 specification. It is carbon steel structural steels with low carbon, used for welding, bolting, and more riveted structure. JR indicates that the material has been subject to a longitudinal charpy V-notch impacts 27 joules at 20℃.

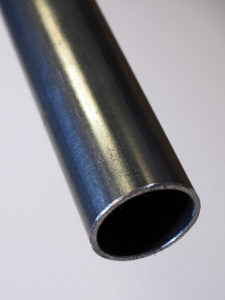

S235JR Seamless Pipe

S235JR Pipe Chemical Composition

C	Si	Mn	P	S
0.17	0.35	0.65	0.03	0.03

S235JR Pipe Mechanical Properties

Yield Strength	Tensile Strength	Elongation
275	360-510	18

S235 Pipe Manufacturer

Standard: EN10219, EN10210, ASTM A53, A106, API 5L

Steel Grade: S235JR, S275, S255 Pipe

Diameter: 1/2” to 40” (SEAMLESS), 1/2” to 24” (ERW), 16” to 60” (LSAW)

Thickness: SCH 10, SCH 20, SCH 40, SCH STD, SCH 80, SCH XS, SCH XXS, SCH 120, SCH 160

Length: Random length 5 to 12 meters, fixed length 20 ft (6 meter), 40 ft (12 meter)

End Type: Plain, Beveled

Manufacturer: Seamless, Welded

Coating: Black Painting, Galvanized, PE, 3PE, Anti-rust Oil, FBE.

Test: Chemical Component Analysis, Mechanical Properties (tensile strength, Yield strength, Elongation), Metallographic Test, Technical Properties (Bending Test, Charp-v Impact Test, Hydrostatic Test, X-ray Test, hydrostatic Test

Quality Control for Carbon Steel Pipes

Purchase High Quality Material

Advanced equipment and standardized production

Strict Quality Inspection

In-factory Inspection, including appearance, dimensions, and materials.
Third Party Inspection: BV, SGS, LR, DNV, ABS

Certifications: ISO, CE, CI, PL, CO, BL, MTC

Tolerance for steel pipes:

Diameter tolerance: ±1% with a minimum of ±0.5 mm and a maximum of ±1mm
Wall thickness tolerance: D≤406.4mm, T≤5mm±10%, T＞5mm±0.5mm
