Threaded Union
Threaded Union
We are manufacturer of threaded pipe union and supplies class 3000, 6000, 9000 in kinds of materials such as carbon steel, stainless steel, alloy steel.

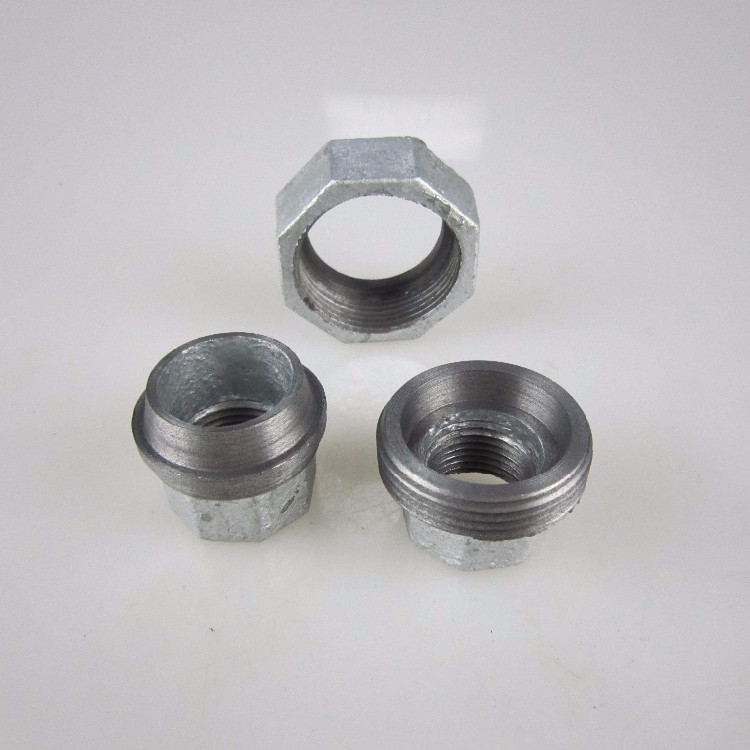

Pipe union is a forged fitting that designed for unite two pipes which can be detached without causing any deformation to the pipes. Any kind of small diameter piping connections requiring a positive seal and easy assembly as well as disassembly are made with the help of pipe union. Three parts of steel pipe union: A nut, a female end, a male end.
Steel Pipe Union Dimensions
Pressure: 2000, 3000LB, 6000LB, 9000LB
Size: from 1/8″ to 4″ (DN6-DN100)
Threads: NPT, NPSC, SAE, BSPT, BSPP
Material: Carbon Steel, Stainless Steel, Alloy Steel.
Standard: ANSI/ASME B16.11, BS 3799
Finish:Galvanized or Oil, Black Priemer
Technique: Forged Pipe Fittings
Materials for Forged Pipe Fittings
Stainless Steel Threaded Union:
ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347, F347H, F454L ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Threaded Pipe Union:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Pipe Union:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Threaded Pipe Fittings:
ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91
ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Pipe Union
ASTM / ASME SB 111 UNS NO. C 10100, C 10200 , C 10300 , C 10800 , C 12000, C 12200, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C71500 ( CU -NI- 70/30)
Nickel Alloy Steel Pipe Union:
UNS 2200 / NICKEL 200 , UNS 2201 / NICKEL 201 , UNS 4400 / MONEL 400, UNS 8020 / ALLOY 20 / 20 CB 3, UNS 8825 / INCONEL825, UNS 6600 / INCONEL 600, UNS 6601 / INCONEL 601 , UNS 6625 / INCONEL 625, UNS 10276 / HASTELLOY C 276
Class 3000 Union Weight
Nominal Size | Union | |
DN | NPS | 3000 |
6 | 1/8 | 0.25 |
8 | 1/4 | 0.3 |
10 | 3/8 | 0.35 |
15 | 1/2 | 0.46 |
20 | 3/4 | 0.61 |
25 | 1 | 0.85 |
32 | 1 1/4 | 1.35 |
40 | 1 1/2 | 1.92 |
50 | 2 | 2.85 |
65 | 2 1/2 | 4.9 |
80 | 3 | 7.1 |
100 | 4 | – |
Threaded Coupling VS Union
Threaded coupling and union are both used to connect pipes with threaded ends. Generally speaking, a union consists of three pieces or more, a coupling is a single piece, the union has a center nut that connects the two halves of the union together. As some connections between two sections of piping require occasional disconnections, unions are specified at those locations rather than couplings, which aren’t meant to be disassembled.

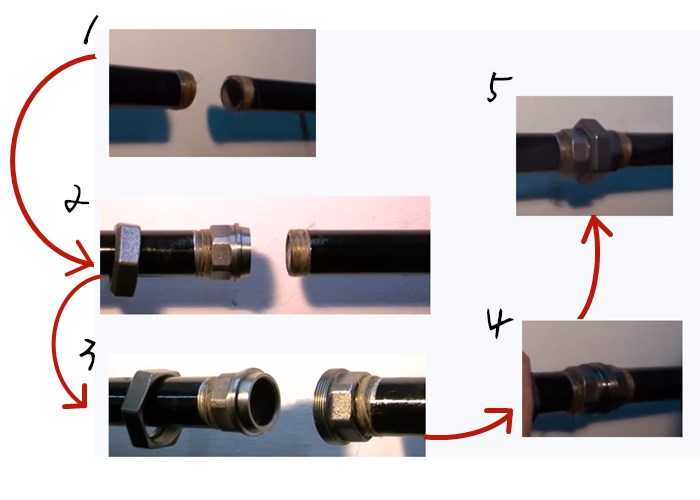

Installing a Threaded Union
Forged Threaded Fittings
- Chemical Industry
- Gas and Oil
- Medicine
- Papermaking
- Seawater
