Threadolet
Threaded Outlets
We are manufacturer of threaded outlet and supplies Class 3000, 6000 in kinds of materials such as carbon steel, stainless steel, alloy steel.
Threadolet is a kind of self reinforced branch connection pipe fitting that used for small size piping with low pressure applications. It is provided with full size type and reducing size type. Full size threadolet offers a same diameter branch with the run pipe. For example, a the diameter of full size threadolet is 2”x2”. While reducing threadolet is when branch size is less than run pipe size. For example, 3”x2” threadolet. Its end is suited for the threaded connection.

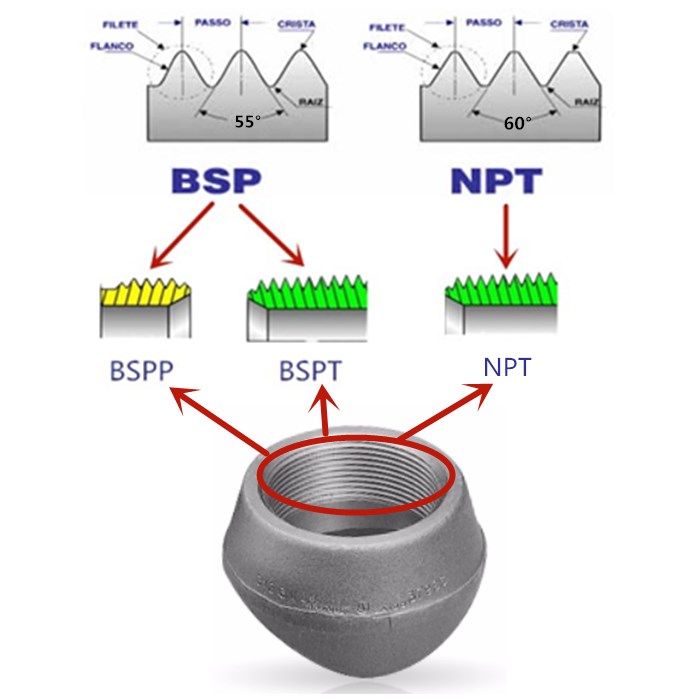

Thread Types of Threaded Forged Fittings
NPT Threadolet
NPT stands for National Pipe Tapered threads (also for ANSI/ASME B1.20.1 Pipe Threads). It is a U.S. standard for measuring tapered threads on threaded pipes and fittings. It has 60 degree thread angle.
NPT pipe fittings require some kind of sealant placed on the threads before assembly.
BSP Threadolet
BSP refers to British Standard Pipe, it is screw threads for interconnection and sealing pipes and fittings. BSPP and BSPT is two common type of BSP threads.
BSPP and BSPT both have 55 degree thread angle. BSPT is also tapered threads but can be connected with NPT threads. While BSPP is parallel thread type.
Threaded Fittings Type
Branch Outlet Feature
Pressure: 3000LB, 6000LB
Size: from (1/4-36)″ to (5-36)
Standard: MSS-SP-97
Threads: NPT, NPSC, SAE, BSPT, BSPP
Material: Carbon Steel, Stainless Steel, Alloy Steel
Finish:Galvanized or Black,PE and Pickled
Packing: Carton box and wooden box

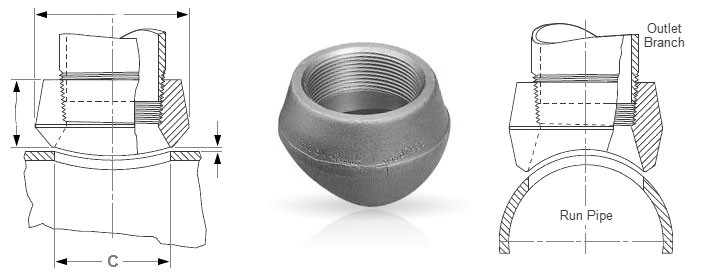

Threaded Outlet Dimensions
| Run Pipes Nominal Sizes | 1/4” to 36”, DN8 to DN900 |
|---|---|
| Branch Nominal Size | NPS 1/8 to NPS 4, DN6 to DN100 |
| Thread Type | NPT Threadolet, BSPP, BSPT, PT |
| Stainless Steel Threadolet | ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347 |
| Carbon Steel Threadolet Outlet | ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70 |
| Alloy Steel Threadolet | ASTM A182 F1, F5, F9, F11, F12, F22 |
| Duplex Steel Outlet Fittings | ASTM A182 F51, F53, F55, F60 |
| Copper & Nickel Alloy | NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276
C70600 ( CU -NI- 90/10) , C71500 ( CU -NI- 70/30) |
Threadolet Dimension Chart
Threaded Outlet Dimensions
| MSS SP-97 Threadolet Dimensions | ||||||||||
| Branch Nominal Size | Length | OD of Fitting | OD at End of Branch | Length of Thread | Cut Hole Dia. | |||||
| DN | NPS | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | |
| 6 | 1/8 | 19 | 27 | 22 | 6.7 | 16 | ||||
| 8 | 1/4 | 19 | 27 | 22 | 10.2 | 16 | ||||
| 10 | 3/8 | 21 | 30 | 25 | 10.4 | 19 | ||||
| 15 | 1/2 | 25 | 32 | 38 | 45 | 33 | 42 | 13.6 | 24 | 19 |
| 20 | 3/4 | 27 | 37 | 47 | 52 | 39 | 48 | 13.9 | 30 | 25 |
| 25 | 1 | 33 | 40 | 56 | 63 | 48 | 58 | 17.3 | 36 | 33 |
| 32 | 1 1/4 | 33 | 41 | 66 | 72 | 58 | 67 | 18 | 45 | 38 |
| 40 | 1 1/2 | 35 | 43 | 75 | 83 | 64 | 77 | 18.4 | 51 | 49 |
| 50 | 2 | 38 | 52 | 90 | 104 | 77 | 93 | 19.2 | 65 | 59 |
| 65 | 2 1/2 | 46 | 105 | 94 | 28.9 | 76 | ||||
| 80 | 3 | 51 | 124 | 114 | 30.5 | 94 | ||||
| 100 | 4 | 57 | 154 | 140 | 33 | 121 | ||||
Threaded Outlet Weight
| Threadolet Weight Chart | |||
| Branch Nominal Size | Approx. Weight/kg | ||
| DN | NPS | 3000 | 6000 |
| 6 | 1/8 | 0.05 | |
| 8 | 1/4 | 0.05 | |
| 10 | 3/8 | 0.09 | |
| 15 | 1/2 | 0.17 | 0.32 |
| 20 | 3/4 | 0.22 | 0.47 |
| 25 | 1 | 0.43 | 0.65 |
| 32 | 1 1/4 | 0.61 | 0.96 |
| 40 | 1 1/2 | 0.69 | 1.28 |
| 50 | 2 | 1.1 | 2.15 |
| 65 | 2 1/2 | 1.52 | |
| 80 | 3 | 2.5 | |
| 100 | 4 | 4.1 | |
Sockolet VS Threadolet
Sockolet is also a popular branch connection pipe fittings, it connects pipes by socket welding. The dimension ranges and manufacture technique is the same as threadolet.
Weldolet VS Threadolet
Weldolet is more different with threadolet. It has larger dimension range and connects pipes by butt welding, but it is also a forged branch connection pipe fittings.
