Threaded Elbow

We are manufacturer of threaded elbow and supplies NPT, BSPT, BSPP Elbow in kinds of materials such as carbon steel, stainless steel, alloy steel. According to different degree we supply 90 Degree Elbow and 45 degree elbow.

Threaded elbow is forged pipe fittings that has fine microstructure and good appearance, it connects with pipes by threads and provide a certain degree direction changes. Stainless steel threaded elbows are corrosion resistance, carbon steel elbow has great cost advantages.

As China leading manufacturer and exporter, Zizi provides ASME, BS and other standard forged threaded elbows in customized dimensions and materials.

Threaded Elbow Dimensions

Thickness: Sch80, Sch160, SchXXS (Class2000, 3000, 6000)
Size: from 1/4″ to 4″ (DN6-DN100)
Form: 90 Degree Elbow & 45 Degree Elbow
Threads: NPT, BSPT, BSPP, NGT, SAE
Material: Carbon, Stainless, Alloy Steel
Standard: ANSI B16.11,BS3799
Finish:Galvanized or Black, PE and Pickled
Applications: Petroleum, Refining, Waste Treatment, Marine, Power Generation, Gas Compression

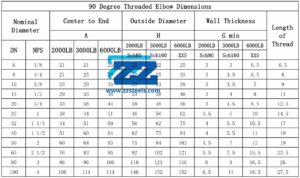

Threaded 90° Elbow Dimensions

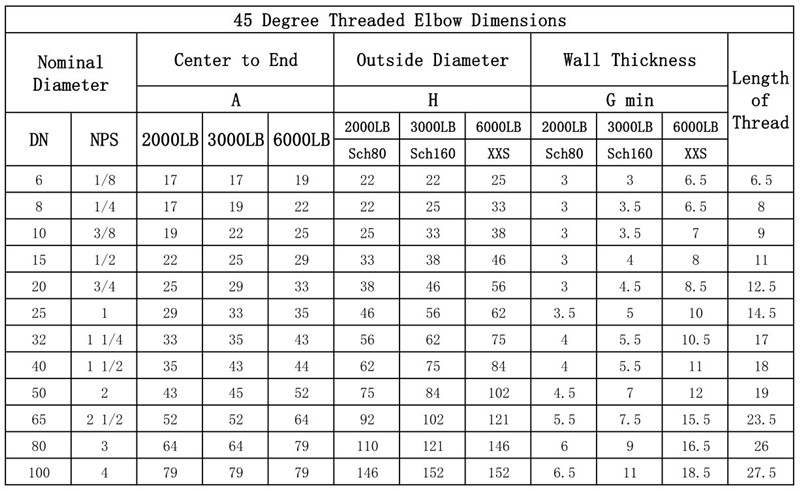

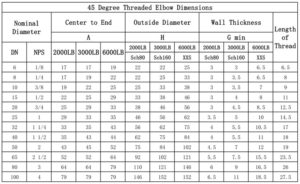

Threaded 45° Elbow Dimensions

Forged Steel Elbow Materials

Carbon Steel Threaded Elbow

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2

Stainless Steel Forged Elbow

ASTM A182 F304, F304L, F306, F316L, F309S, F310S, F317, F321, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex Stainless Steel Elbow

ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950

Alloy Steel Pipe Elbow

ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F23, F91, Nickel alloy, Copper Alloy

NPT Elbow

Thread Elbow NPT

This elbows are suitable for high-purity, chemical handling applications in semiconductor and chemical industries. They connect to standard NPT threaded components including PFA fittings and PFA threaded pipe systems. It was initially designed for water pipelines, but it also have been used in hydraulic systems for many years.

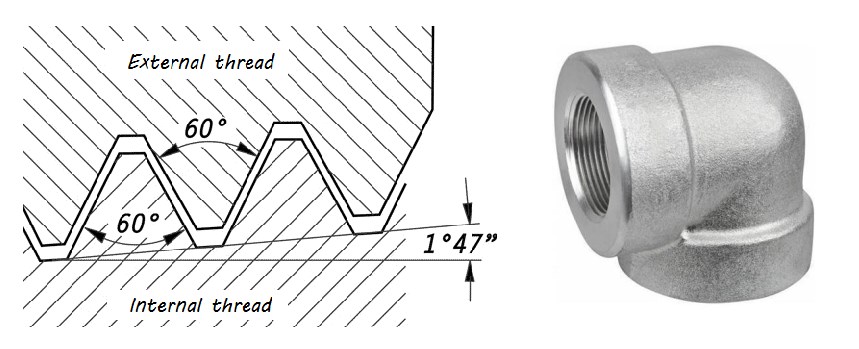

NPT stands for national pipe tapered threads, also known as ASME/ ANSI B1.20.1 pipe threads. This American standard threads cannot use with  NPS as well as other standard threads. Tapered threads will provide a closer seal than straight threads.

Characteristics of NPT Threaded Elbow

• Angle between taper and center axis of pip is 1°47’24”
• 60° thread angle
• Pitch is measured in threads per inch.
• Required sealant or PTFE placed on the threads before assembly

BSPT Elbow

BSPT stand for British Pipe Tapered threads, its diameter increases or decreases along the length of the thread, denoted by the letter R. Contact is made on the flanks of the threads. It is recommended to use sealant for BSPT elbow connection. The function of BSPT thread elbow are similar to NPT elbow expect several important differences.

• The angle across the flanks of threads is 55 degree instead of 60 degree of NPT.
• BSPT pipe sizes the thread pitch is different than NPT
• Thread form per AS1722.1, BS21, ISO 7

BSPP Elbow

BSPP Elbow is parallel thread fittings that uses a bonded seal ring to do the sealing, BSPP refers for British Standard Parallel pipe threads. It has the same thread angle with BSPT elbows.

• Thread form per AS 1722.2, ISO 228
• Constant diameter, denoted by the letter G.

BSP Thread

Threaded Elbow Features

• Quick Installation
• Easy Usage
• Leak Proof
• Fine Microstructure
• Good Quality
