Stainless Steel Socket BSPP
3 in SS316 Socket
As a trusted Stainless Steel Socket BSP Fittings Supplier by customer and offer 3″ Socket BSPP SS316 3000LB at $65/pc for Southeast Asia.
Threaded Socket is also known as Threaded Coupling which includes Full Coupling and Half Coupling.
Stainless Steel Couplings are used in creating tanks, vessels, or reservoirs that can accommodate BSP or NPT Threaded Fittings. Available in either Stainless Steel 304 or 316. It can guarantee long lasting performance, even in corrosive environments
Threaded Socket Dimensions
Size: 3 Inch
Pressure: 3000lb
Material: SS316
Thread: BSPP
Standard: ASME B16.11
Exw Price: $65/pc
Stainless Steel 316 Socket Chemical Composition
C | Mn | Si | P | S | Cr | Mo | Ni |
---|---|---|---|---|---|---|---|
0.035 | 2 | 0.75 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 |
Stainless Steel 316 Socket Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
515 (Mpa) | 205 (Mpa) | 40 (%) |
Threaded Forged Fittings
Standard | ASME/ANSI B16.11, BS3799 |
---|---|
Diameter Range | 1/8 to 4 inch / DN6-DN100 |
Pressure Rate | 3000lb, 6000lb, 9000lb |
Product | 90 Degree Elbow, Forged Tee, Stainless Steel 316 Socket , Threaded Cap , Plug, Bushing, Nipple |
Thread Types | NPT, BSPP, BSPT |
Stainless Steel Socket | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
Carbon Steel | ASTM A105N, A350 LF2/LF3,A694 F52, F60, F65, F70 |
Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
3000lb Coupling
Surface Treatment
Pickling and Solution Treatment
All Forged Threaded Couplings will be surfaced with Anti-rust Oil.
SS316 Socket Fittings
Inspection
Inspect Stainless Steel Threaded Fittings according to ASME B16.11 Standard
Quality controller visual check surface and marking, and measure the size.
Check the size refer to pressure rate 3000lb and American Standard
Test Thread with Go-No Go Guage
Third party inspection: BV, SGS, LR, DNV, ABS

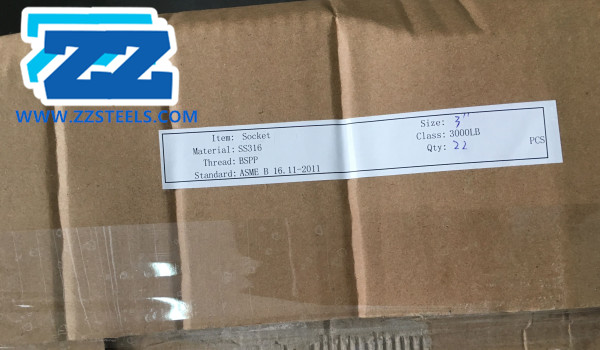

3 Inch Threaded Socket Package
Lining up the 3 Inch Threaded Socket in carton and Marking List on Each Carton.
Packed all cartons into free fumigation wooden cases.
BSPP Threaded Coupling
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 7 days are ready to deliver
Shipment: LCL, 20GP, 40GP, 40HQ, Air, Courier
Document: CI, PL, CO, BL, SS316 Coupling 3 Inch BSPP MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
