Stainless Steel Pipe Cap ASTM A403 WP304
Stainless Steel Buttweld Pipe Fittings
ASTM A403 WP304 Stainless Steel Pipe Cap 8″ Sch 40 BE ASME B16.9 has good comprehensive performance, corrosion resistance and weld-ability.
Stainless steel is largely used in pipe fittings fabrication because of its good performance, it can withstand diverse corrosion such as atmosphere, water, seawater and high temperature, so stainless steel pipe fittings can be used in pipe system with high pressure and temperature.
Zizi is ISO certified manufacturer of buttweld fittings, socket weld fittings and threaded fittings, we offers best quality and price for every client.
Buttweld Fittings Dimensions
| Standard | ASME / ANSI B16.9, SY/T0510, HG/T21631, SH3408, GB/T13401, GB/T12459 |
|---|---|
| Diameter | NPS 1/2 to NPS 48, DN15 to DN1200 |
| Schedule | Sch 10S, 20, STD, 40 XS, 80, 120, 160, XXS |
| Products | 90 Degree Elbow, 45 Degree Elbow, Return Elbow, Bend, Equal & Reducing Tee, Concentric and Eccentric Reducer, Stainless Steel Pipe Cap, Stub End Type A & Type B. |
| Surface | Black Primer, Galvanized, PE Coating |
| Stainless Steel Pipe Cap | ASTM A403 WP304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347 |
| Carbon Steel Pipe Cap | ANSI / ASTM A234 WPB, A420 WPL3,WPL6, WPL9, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70, |
| Alloy Steel Pipe Cap | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
Features of Stainless Steel Pipe Cap
- Durable
- Accurate size
- ISO Certified Quality
- High corrosion withstand
- Beautiful appearance

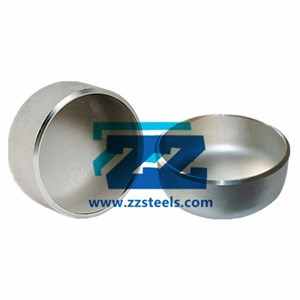

Stainless Steel Pipe Cap
Order Example for Steel Pipe Cap
Item: Pipe Cap
Size: 8” Sch 40
Connection: Buttweld
End: BE
Material: ASTM A403 WP304
Standard: ASME B16.9
Quantity: 331 PCS
MOQ: 1 PCS

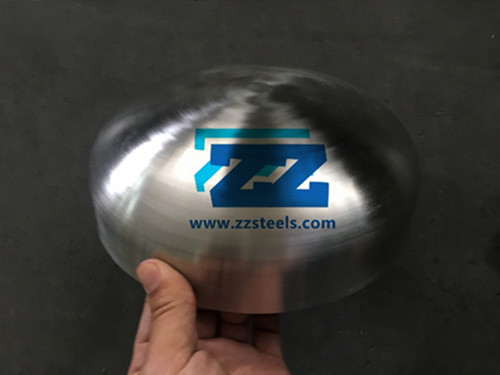

Inspection of ASTM A403 WP304 Pipe Cap
- Check the marking
- Hand touch and visual check the surface of pipe cap.
- Measure the size to make sure they are in tolerance.
- Test the chemical composition of A403 WP304 Pipe Cap.
Package of Stainless Steel Buttweld Fittings
- Plastic film
- Wooden cases for small dimensions pipe fittings.
- Wooden pallet for large dimensions pipe fittings
- Labels on the outside of package.
Package of Buttweld Elbow
Why Choose Us
- Complete products
- Various Materials
- Customized Sizes
- No Limit for Quantity
- Fast Delivery
- ISO Certified
ASTM A403 WP304 Buttweld Pipe Fittings
Chemical Composition
| C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.08 | 2.0 | 1.0 | 0.04 | 0.03 | 18-20 | 8-11 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515 (Mpa) | 205 (Mpa) | 40 (%) |
