Sockolet Class 3000 8” x 1” MSS-SP-97
Branch Outlet Fittings
Sockolet is one of the most popular branch outlet fittings which available in Class 3000 & Class 6000, diameters from 1/8” to 4” according to MSS SP 97.
The most common used branch outlet fittings are weldolet, threadolet and sockolet, they are different in the connection ways. Other than these, there are nipole, latrolet, elbolet and other outlet fittings is used in industrial applications.
Zizi is high quality manufacturer and exporter of branch outlet pipe fittings, we offer diverse outlet fittings in various dimensions and materials.
3000lb Sockolet Dimensions
Standard | MSS-SP-97, ASME B16.11 |
---|---|
Run Pipes Nominal Sizes | 1/4” to 36”, DN8 to DN900 |
Branch Nominal Size | NPS 1/8 to NPS 4, DN6 to DN100 |
Pressure Rating | Class 3000 Sockolet & Class 6000 Sockolet (XS, Sch 160) |
Sockolet Class 3000 Material
Stainless Steel Sockolet 3000LB Sockolet
ASTM A182 F304/304L, F306/316L, F309S, F310S, F321, F347, F347H
Duplex & Super Duplex Steel Sockolet Class 3000
ASTM A 182 F 51, F53, F55
Carbon Steel Sockolet 3000LB Sockolet
ASTM/ ASME A 105, A 350 LF 2, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. A 691 GR A, B & C
Alloy Steel Sockolet 3000LB Sockolet
ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F23, F91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Sockolet 3000LB Sockolet
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Sockolet 3000LB Sockolet
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400) , UNS 6600 (INCONEL 600 ) , UNS 10276 (HASTELLOY C276)
Ordering Branch Connection Fittings
- Diameter: run pipe size x branch pipe size, such as 8” x 1”
- Wall Thickness: Class 3000 or Class 6000 sockolet, or expressed as XS, Sch 160.
- Material: materials for forged steel pipe fittings is ok.
- Standard: generally speaking it is MSS SP 97.
- Other requirements. For example, coating is often required for carbon steel sockolet.

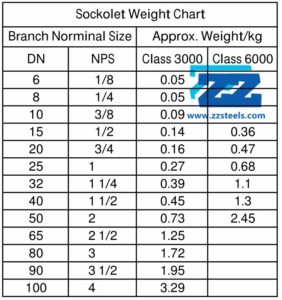

Weight of Sockolet

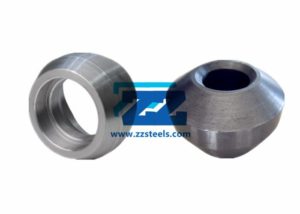

Sockolet VS Weldolet
Sockolet is designed based on the structure of weldolet, but their dimension ranges are different. According to MSS SP 97, the branch sizes of weldolet is from 1/8” to 24”, and pressure rating is STD, XS and Sch 160. However, sockolet is only available in 1/8” to 4”, XS and Sch 160. What’s more, weldolet need to bevelled the end for welding and sockolet need insert the pipe into a sock for welding.
What is a Sockolet Used For?
- Offer branches
- Reducing pipe size
- Change the direction in 90 degree
- Creat integrally reinforced connections
Advantages of 3000LB Sockolet
- Cost advantages
- Great performance
- High quality
- Reasonable price
- Durable

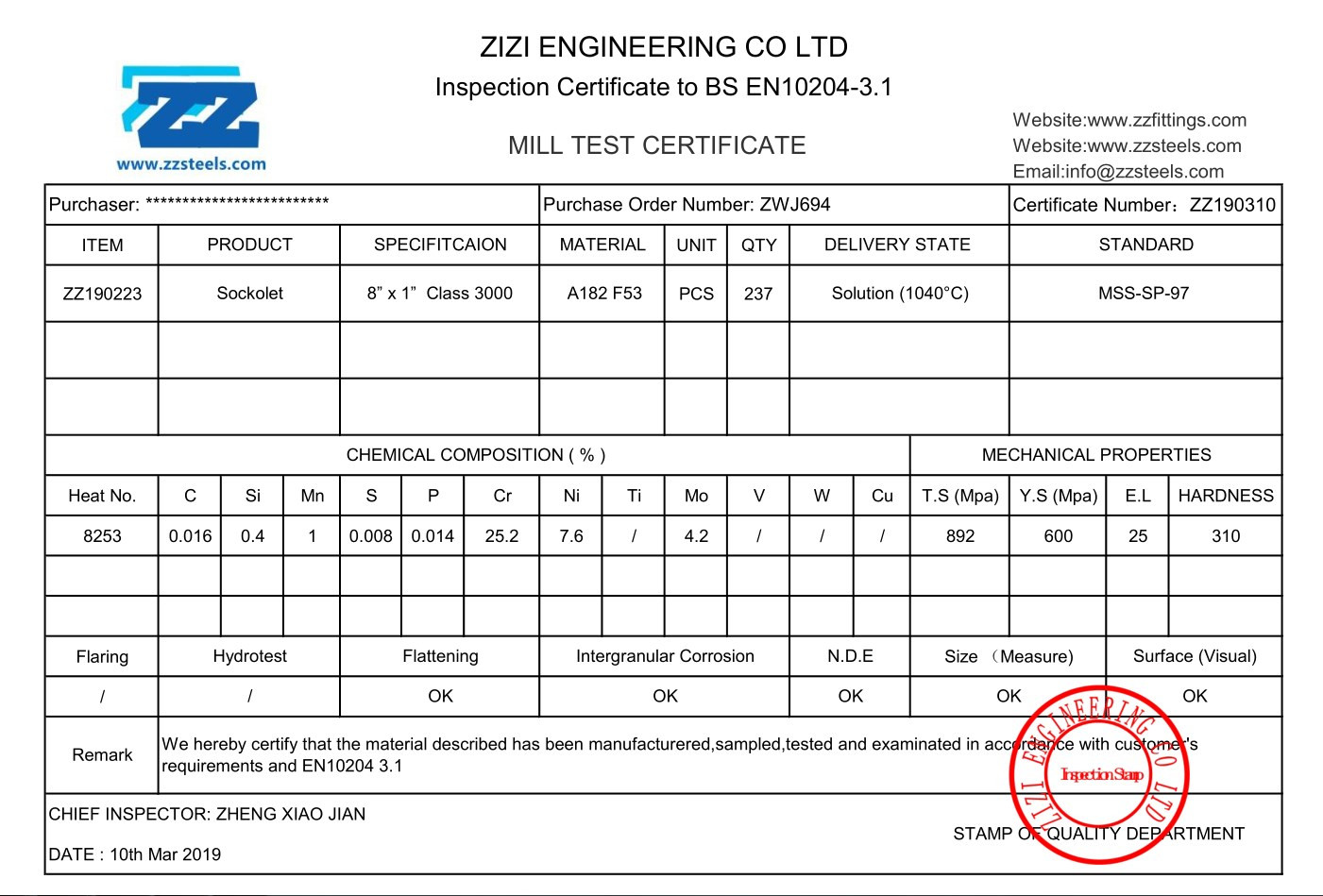

ASTM A182 F53 Properties
Chemical Composition
C | Mn | P | S | Si | Cr | Ni | Mo |
---|---|---|---|---|---|---|---|
0.03 | 1.2 | 0.035 | 0.015 | 0.8 | 24-26 | 6-8 | 3-5 |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
600-930 MPa | 550 MPa | 15 % |
