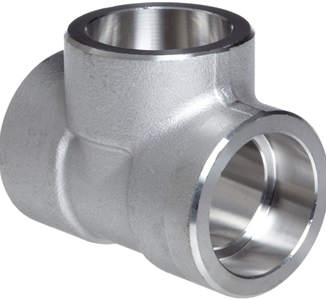

Socket Weld Tee
Socket Weld Tee
We are manufacturer of Socket Welding Tee and supplies Class 3000, 6000,9000 Tee in kinds of materials such as carbon steel, stainless steel, alloy steel.
Socket weld is a pipe connection way which the pipe is inserted into a recessed area of a pipe fitting or flange. It mainly appears in small diameter pipe system which are 4 inch or smaller. And in this conditions, it can provide high leakage integrity and great structural strength. The fatigue resistance is lower than butt weld construction.
Equal Tee
Equal tee is the basic tee type. It has three outlet in the same size, the branch outlet forms a 90 degree angle form the run pipe. In another word, it provides a 90 degree branch form the main pipe.
Equal Tee
Socket Weld Tee Reducer
Socket weld tee reducer (or reducing tee) has a smaller diameter branch outlet that used to connect a smaller pipe branch.
Reducing Tee
ASME B16.11 Socket Weld Tee
Zizi provided forged steel socket weld fittings in different sizes and materials. They are made according to ASME, EN, DIN, JIS or other specification standards based on the demands of customers, but their dimension range is still the same.
Socket Weld Tee Feature
| Specification Standard | ASME B16.11, BS 3799, MSS-SP-95/97 Socket Weld Fittings |
|---|---|
| Size | 1/8″, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″ |
| Pressure / Thickness | 3000LB, 6000LB, 9000LB / Sch80, Sch160, SchXXS |
| Finish | Galvanized or Black, PE and Pickled |
socket weld fittings dimensions
Socket Weld Fittings Material
Stainless Steel
ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347,
Carbon Steel
ASTM/ ASME A 105, ASTM/ ASME A 350 LF2
Alloy Steel
ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91
Nickel & Copper Steel
NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276, C 70600, C71500
Marking & Package of Forged Tee Fittings
Marking
The marking will cover the size, pressure, product type, material, manufacture standard and heat No. of socket weld tee. Such as ” 1″ 6000# SW A105 B16.11 2047 “, some of them are shorted due to the limited space.
1″ Class 6000 SW Tee
Package
To ensure the good condition of socket weld fittings when delivery, we will take attentive package.
No matter what the material is, each product will be protected by anti rust oil and plastic bag, then placed in carton box and wooden case. Box and cases have labels on the outside for easy indentification.
