Socket Weld Flange CL300 ASME B16.5
Socket Weld Flange ASME B16.5

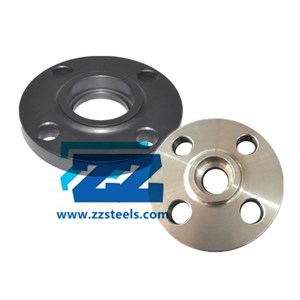

According to ASME B16.5, Socket Weld Flange CL300 is available from NPS 1/2” to 3” only so that it is commonly used on small sizes pipelines.

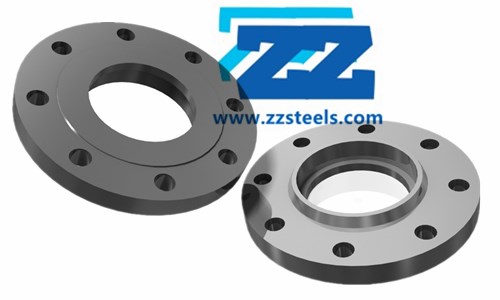

Pipes will be inserted into to socket end at the center hole of flanges and then applied fillet weld around the top, therefore socket weld flanges are suitable for high pressure pipe systems. It offers better flow and smooth bore as well. Socket weld flanges are usually provided with raised face, flat face or ring type joint face, and the height of raised face are not fix in ASME B16.5.
Zizi is leading manufacturer and supplier of forged steel flanges and pipe fittings, we have our own fabrication plant which can offer custom service and two warehouses that near to harbors. Our products have been sold to 37 countries around the world.

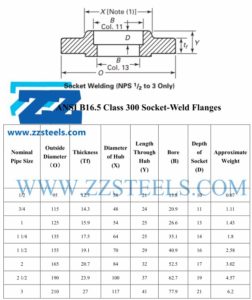

Class 300 Socket Weld Flange Dimensions
- Dimensions are in millimeters.
- Click here to see the tolerances.
- The weight of 300LB socket weld flanges are in Kg.
Order of 300 LB Socket Weld Flange
Size: 3” Class 300 Socket Weld Flange
Seal: Raised Face Sch 40
Standard: ASME B16.5
Material: ASTM A105N
Quantity: 352 PCS
Lead Time: 15 Days
Delivery: Shipping
Shipment of Carbon Steel Forged Flanges
Package
- Print marking on the surface, such as “ Flange 3” 300# SW RF A105N B16.5 3762”.
- Dip flanges into anti-rust oil.
- Wrap them with plastic foam.
- Put 3” Class 300 socket weld flanges into carton boxes, then put boxes into wooden cases.
Document

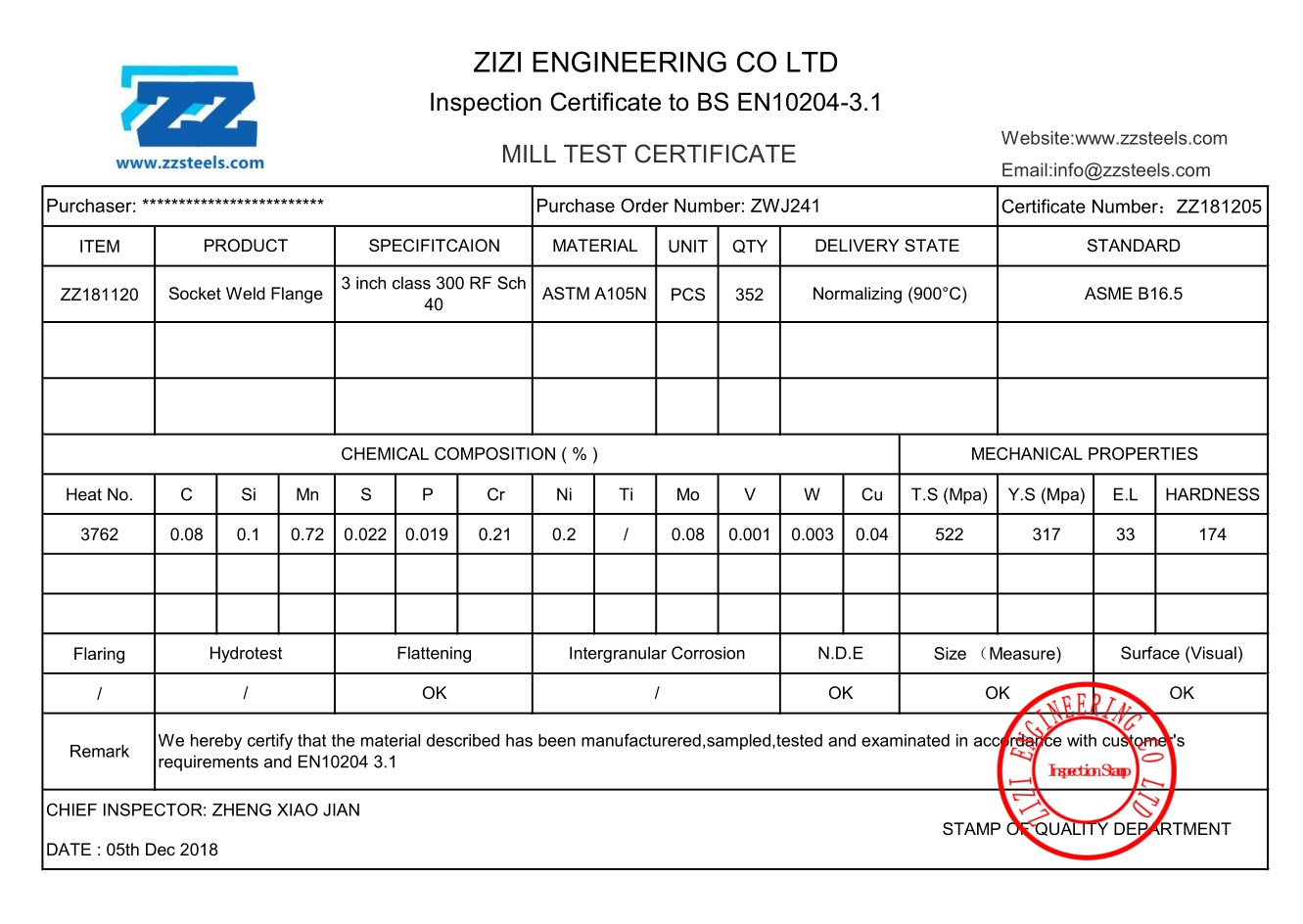

CI, PL, CO, BL, MTC
Certificate
CE, ISO, TEST REPORT
Delivery Port
Shanghai, Tianjin, Qingdao
Forged Steel Flange Dimensions
Standard | ASME B16.5, B16.47, DIN, JIS Socket Weld Flange CL300 |
---|---|
Diameter | 1/2 to 24 Inch / DN15 — DN600 |
Pressure | Class 150, 300, 600, 900, 1500, 2500 |
Seal Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) Socket Weld Flange |
Seal Thickness | Sch 10S, 20, STD, 40, XS, 80, 160, XXS |
Products | Weld Neck Flange, Threaded Flange, Lap Joint Flange, Socket Weld Flanges CL300, Slip On Flange, Blind Flange, Spectacle Blind. |
Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
Duplex Stainless Steel | ASTM A 182 – F 51, F53, F55 |
Carbon Steel | ASTM A105N, A350 LF2/LF3, A694 F52, F60, F65, F70 |
Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
Advantages of ASME B16.5 Flanges
- Various types and extensive applications
- Socket Weld Flange CL 300 is no need to be beveled and align
- Convenient Usage
- Easy installation and maintenance
- Leak-proof
- Durable
ASTM A105 Material Properties
Chemical Composition
C | Mn | Si | P | S | Cr | Mo |
---|---|---|---|---|---|---|
0.15 | 0.6-1.05 | 0.1-0.35 | 0.035 | 0.04 | 0.3 | 0.12 |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
485 (Mpa) | 250 (Mpa) | 30 (%) |
