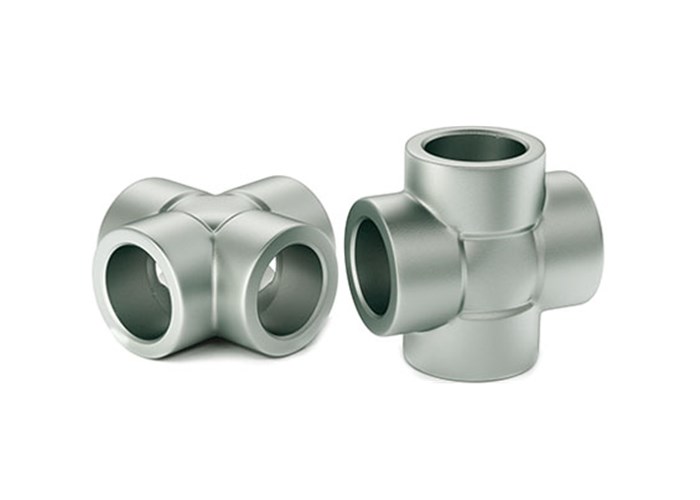

Socket Weld Cross
Socket Weld Cross
We are manufacturer of Socket Welding Cross and supplies class 3000,6000,9000 Cross in kinds of materials such as carbon steel, stainless steel, alloy steel. ASME B16.11 SW crosses are manufactured as per international standards in order to provide assurance of the quality and affordable price to the clients.
SW Cross is widely used to connect pipes and provide two branches in small diameter pipe systems. It is good leakage and high strength, can be used in high pressure and temperature pipelines.
Socket Weld Cross Dimensions
Size: from 1/4″ to 4″ (DN6-DN100)
Pressure: 3000LB, 6000LB, 9000LB
Thickness: Sch80, Sch160, SchXXS
Type: Socket Weld Equal Cross & Reducing Cross
Standard: Asme B16.11,MSS-SP-95/97 and BS3799
Finish:Galvanized or Black,PE and Pickled
Materials for Socket Weld Fittings
Stainless Steel Socket Weld Cross:
ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347, F347H, F454L ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Socket Weld Fittings:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Fittings:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Socket Weld Cross Tee:
ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91
ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Nickel & Copper Alloy Pipe Fittings:
NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY, C70600, C71500
Advantages of Socekt Weld Fittings
- SW Cross is Easy Usage and Installation
- they can be used in place of threaded fittings, so the risk of leakage is much smaller
- radiography is not practical on the fillet weld
- Construction costs are lower than with butt weld joint
Delivery of Cross Tee
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, 40HQ
Document: CI, PL, CO, BL, MTC for SW Cross
Certificate: CE, ISO, TEST REPORT
