Socket Weld Cap
Socket Weld Cap
We are manufacturer of socket weld pipe cap and supplies class 3000, 6000, 9000 in kinds of materials such as carbon steel, stainless steel, alloy steel.

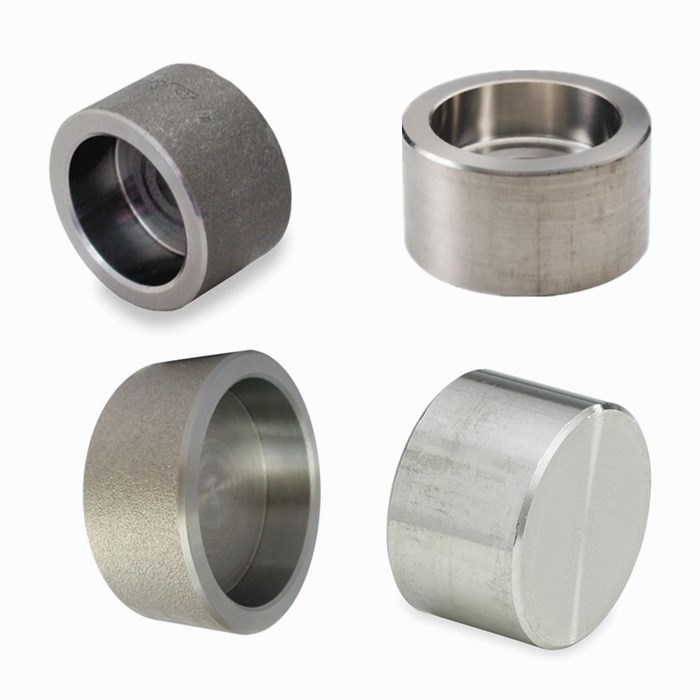

Socket weld pipe cap is pipe cap that socket welding at the end of a pipe in order to stop the flow. socket weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a pipe cap, it mainly used for small diameter pipe system within NPS 4. It is a good choice for the benefits of high leakage integrity and great structural strength.
Socket Weld Pipe Cap Specification
Size: from 1/8″ to 12″ (DN6-DN300)
Pressure: Class 3000, 6000,9000
Material: Carbon Steel, Stainless Steel, Alloy Steel.
Standard: ASME B16.11
Finish:Galvanized or Oil
ASME B16.11 Cap Dimensions
Norminal Size | Socket Bore Dia B |
Socket Wall Thickness C | Depth of Socket J |
End Wall Thickness K | |||||
DN | NPS | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | ||
6 | 1/8 | 10.9 | 3.18 | 3.43 | 9.5 | 4.8 | 6.4 | ||
8 | 1/4 | 14.3 | 3.3 | 4.01 | 9.5 | 4.8 | 6.4 | ||
10 | 3/8 | 17.7 | 3.5 | 4.37 | 9.5 | 4.8 | 6.4 | ||
15 | 1/2 | 21.9 | 4.09 | 5.18 | 8.18 | 9.5 | 6.4 | 7.9 | 11.2 |
20 | 3/4 | 27.3 | 4.27 | 6.04 | 8.56 | 12.5 | 6.4 | 7.9 | 12.7 |
25 | 1 | 34 | 4.98 | 6.93 | 9.96 | 12.5 | 9.6 | 11.2 | 14.2 |
32 | 1 1/4 | 42.8 | 5.28 | 6.93 | 10.62 | 12.5 | 9.6 | 11.2 | 14.2 |
40 | 1 1/2 | 48.9 | 5.54 | 7.8 | 11.12 | 12.5 | 11.2 | 12.7 | 15.7 |
50 | 2 | 61.2 | 6.04 | 9.5 | 12.12 | 16 | 12.7 | 15.7 | 19 |
65 | 2 1/2 | 73.9 | 7.62 | 16 | 15.7 | 19 | |||
80 | 3 | 89.9 | 8.3 | 16 | 19 | 22.4 | |||
100 | 4 | 115.5 | 9.35 | 19 | 22.4 | 28.4 |
SW Cap Weight
Socket Weld Cap Weight | ||||
Nominal Size | Approx.Weight/kg | |||
DN | NPS | 3000 | 6000 | 9000 |
6 | 1/8 | 0.03 | 0.04 | |
8 | 1/4 | 0.04 | 0.05 | |
10 | 3/8 | 0.05 | 0.07 | |
15 | 1/2 | 0.08 | 0.13 | 0.23 |
20 | 3/4 | 0.15 | 0.22 | 0.35 |
25 | 1 | 0.22 | 0.34 | 0.52 |
32 | 1 1/4 | 0.35 | 0.47 | 0.71 |
40 | 1 1/2 | 0.42 | 0.63 | 0.95 |
50 | 2 | 0.72 | 1.14 | 1.55 |
65 | 2 1/2 | 1.25 | ||
80 | 3 | 2.05 | ||
100 | 4 | 3.28 |
ASME Forged Fittings Material Grades
Carbon Steel Cap: ASTM A105, A350 LF2,LF3. A694 F52, F60, F65, F70
Stainless Steel Socket Weld Pipe Cap: ASTM A182 F304, F316, F317, F321, F310
Duplex Stainless Steel Forged Fittings : ASTM A182 F51, F53, F55
Alloy Steel Socket Weld Fittings: ASTM A182 F1, F5, F9, F11, F12, F22, F91
Features of Socekt Weld Pipe Fittings
- Used for lines conveying flammable, toxic or expensive material where no leakage can be permitted.
- Only used in conjunction with ASME pipe.
- The purpose for the bottoming clearance is usually to reduce the residual stress at the root of the weld that could occur during solidification of the weld metal, and to allow for differential expansion of the mating elements.
Advantages
- Simple welding compared to buttweld pipe cap, construction costs are lower than butt weld joint, too.
- Pipe end is no need to be beveled for welding
- Risk of leakage is much smaller
Usage
Socket weld pipe fittings is widely used in high pressure pipeline of different industries such as
- Oil and Gas, petrochemicals.
- Power stations of electric or nuclear.
- Environment control.
- Aerospace constructions.
- Fire protection systems.
- Shipbuilding.
Socket Weld Pipe Fittings Manufacturer
Product Range
- 90 Degree Elbow, 45 Degree Elbow
- Half Coupling, FullCoupling
- Equal Tee, Reducing Tee, Cross Tee, Lateral Tee
- Pipe Cap
- Pipe Union
Quality Assurance
In Factory Inspection: Dimensions, Material, Appearance
Third Party Inspection: BV, SGS, LR, DNV, ABS and stamp mill test certificate.
Certifications: CE, ISO, TEST REPORT
Package
- Anti-rust Oil
- Plastic Bag
- Carton Box
- Wooden Case
