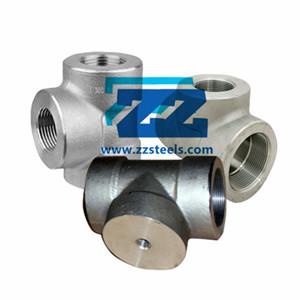

Reducing Tee BSP 3” X 1” 6000LB

Stainless Steel Reducing Tee

Leading forged threaded fittings manufacturer Zizi offers 3” x 1” 6000LB Reducing Tee BSPP in stainless steel 304 according to ASME B16.11.

Stainless steel reducing tee has good quality and high performance. It is corrosion resistance, high strength and durable, so it is often used in corrosive environment. With the feature of clean and safe, it is used in food processing as well.

Zizi offers high quality products that has MTC, third party inspection is available if it’s necessary.

3” x 1” Reducing Tee Dimensions

Standard: ASME B16.11

Size: 3” X 3” X 1”

Pressure: Class 6000

End: BSPP X BSPP

Package: Plastic Bag, Carton Box, Wooden Cases

Delivery Time: 10 Days are ready for shipping

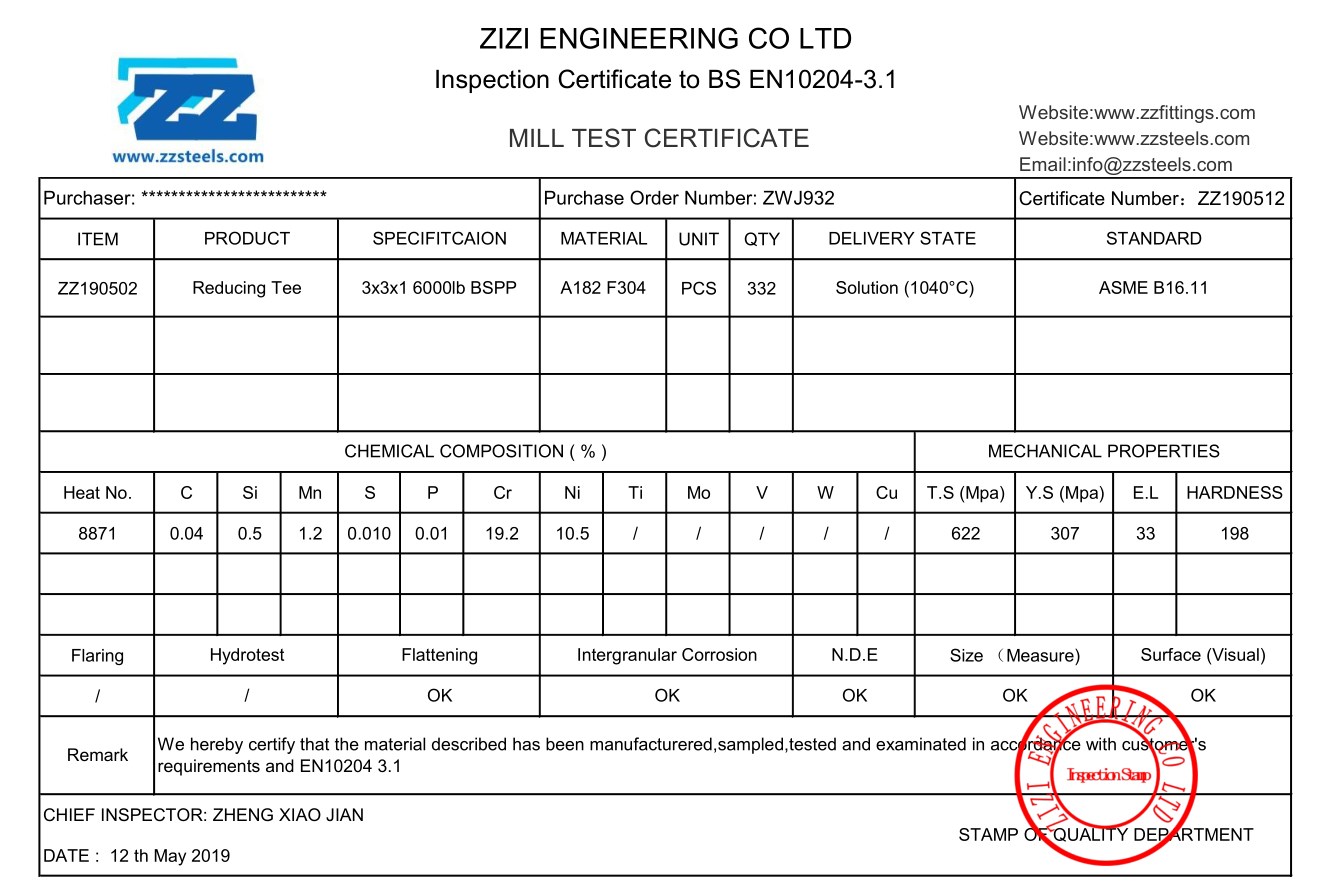

Document: CI, PL, CO, BL, MTC of BSPP Reducing Tee

BSPP Reducing Tee

BSPP Reducing Tee

Inspection of Stainless Steel Threaded Tee

  • Marking: Visual check if the marking is clear and correct.
  • Surface: Check with hands and eyes to ensure it is even and smooth.
  • Dimensions: Measure the size of center to end, outside diameter, wall thickness and length of thread.
  • Thread: Use go/no go gauge to test if the BSPP reducing tee is in good condition.
  • Material: Test chemical components with spectrometers.

What is BSPP Reducing Tee?

BSPP reducing tee means its ends are all BSPP thread.

BSPP is a kind of British thread, its full name is British Standard Parallel Pipe. It’s a prevalent thread type in Asia and Europe. Parallel refers to the angle across the flanks of threads is 0. It cannot used with other thread type.

Threaded Tee Dimensions

Standard ASME B16.11, BS3799
Diameter 1/8″, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure 2000lb, 3000lb, 6000lb
Thread BSPP Reducing Tee, BSPT, NPT
Type Reducing Tee, Equal Tee
Stainless Steel Reducing Tee BSP ASTM A182 F316/316L, F304/304L/304H, F317, F321, F310, F347
Carbon Steel Reducing Tee BSP ASTM A105N BSPP Half Coupling, A350 LF2/LF3,A694 F52, F60, F65, F70
Alloy Steel Reducing Tee BSP ASTM A182 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Reducing Tee BSP UNS No. C70600 ( Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), C 71640, Monel 400, 404, 405, K500. B10, B30

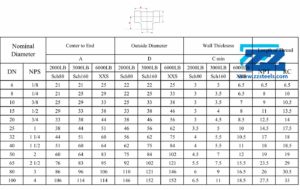

Threaded Tee Dimensions

Threaded Tee Dimensions

Advantages of BSP Reducing Tee

  • Easy Installation
  • Leak proof
  • Cost Effective
  • Durable

Reducing Tee Type

  • Based on connection

Buttweld reducing tee, socket weld reducing tee, threaded reducing tee

  • Based on material

Carbon steel reducing tee, stainless steel reducing tee, alloy steel reducing tee

ASTM A182 F304 Properties

Chemical Composition

C Mn P S Si Ni Cr
0.08 2 0.045 0.03 1 8-11 18-20

Mechanical Properties

Tensile Strength Yield Strength Elongation
515 205 30
