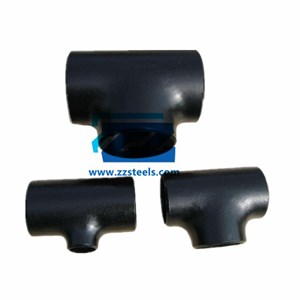

Carbon Steel Buttweld Fittings

We are manufacturer of high quality ASTM A234 WPB Reducing Tee and supply them in large and small quantities with best price.

ASTM A234 carbon steel buttweld fittings are very prevalent and largely used in different industries. It has great cost advantages but do not so good at corrosion resistance. Fortunately, there are many coatings to choose for enhancing the ability of anti rust.

Steel pipe reducing tee is used as a branch connection fittings to offer a smaller branch than main pipes. Its end could be buttweld, socket weld and threaded. Butt weld reducing tee is the most common used in industry due to the large dimension range and leak-proof joint.

12” x 10” Reducing Tee Dimensions

Nominal Size: NPS 12 X 10

Outside Diameter at Bevel: OD1=323.8, OD2=273

Center to End: C=254, M=241

Standard: ASME B16.9

Material: ASTM A234 WPB Reducing Tee

A234 Reducing Tee Weight Chart in kg

Reducing Tee ASTM A234 Package

All of ASTM A234 WPB reducing tee will be wrapped with plastic film, and based on the dimensions they will be put into wooden cases or packaged on wooden pallets.

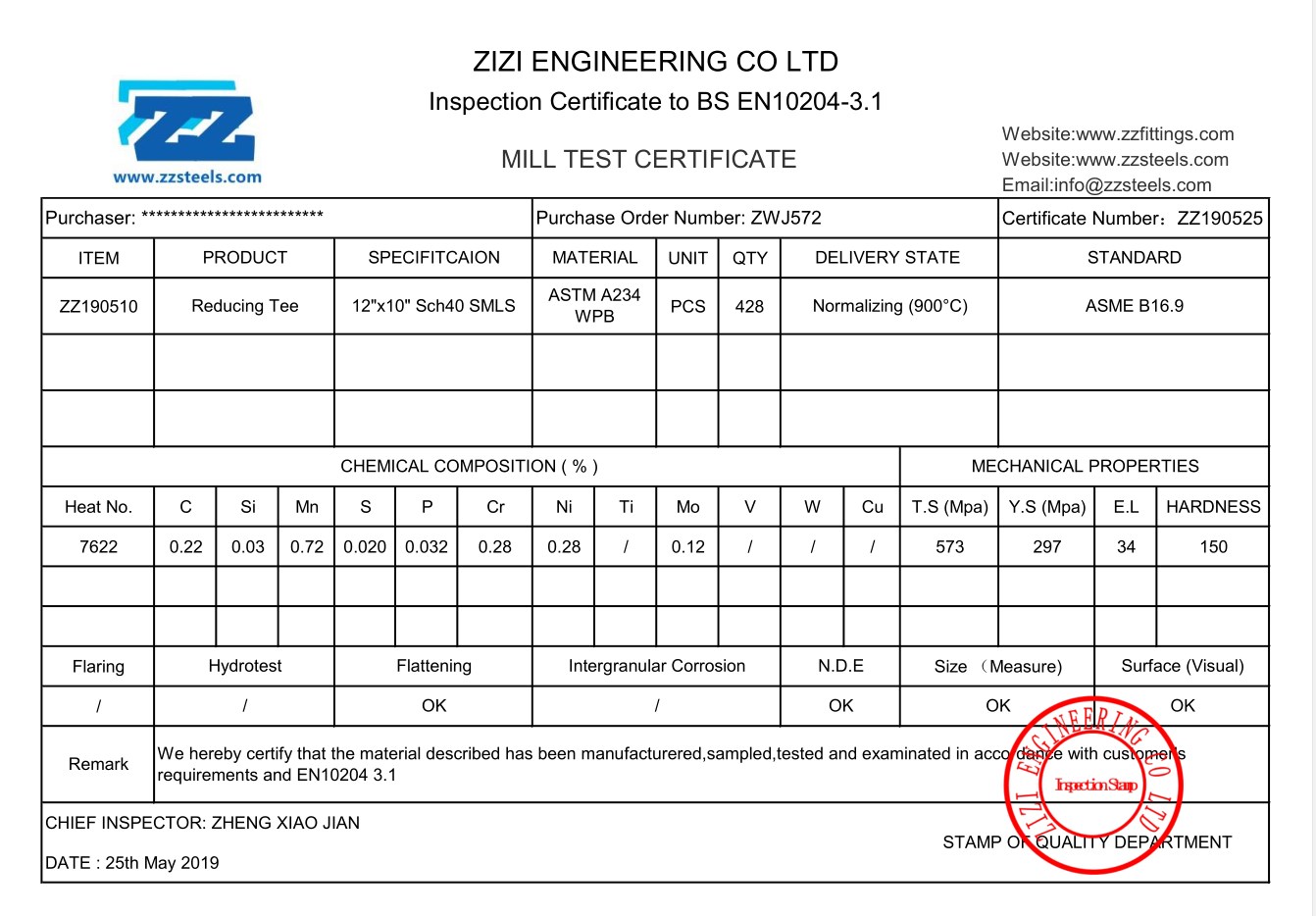

ASTM A234 WPB Reducing Tee Inspection

1. Marking: Correct and complete. Eg: “TEE ASTM A234 WPB 12”X10” SCH40 SMLS 89012”
2. Surface: hand touch and visual check.
3. Dimension: Measure the size of outside diameter, center to end and check if they are in tolerance.
4. Third party inspection: BV, DNV, ABS, SGS.

Supply range of Buttweld Fittings

Standard	ASME B16.9, GB/T12459, GB/T13401, SH3408, HG/T21635, HG/T21631, SY/T0510 Reducing Tee
Diameter	1/2 to 80 Inch / DN15-DN2000
Wall Thickness	Sch 10, Sch 20, Sch 40, Sch 80, Sch 160, Sch XXS
Stainless Steel	ASTM A403 WP304, WP316, WP310, WP321, WP317, WP310
Carbon Steel	A234 WPB Reducing Tee, A420 WPL3,WPL6, WPL9, WPHY42, WHPY52, WPHY60, WHPY65, WPHY70.
Alloy Steel	Copper alloy, nickel alloy, ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91

Q&A For Carbon Steel Pipe Fittings Shipment

1. When will the products ship?

Mostly within 15 days.

2. When will I get the tracking number?

Tracking number is available 24 hrs after shipping.

3. Who pays for shipping?

The buyer.

4. From which port is the goods delivered?

Usually is Shanghai, Tianjin, Qingdao, or as customer required.

5. What are the coatings for carbon steel pipe fittings?

Galvanized, PE Coating, Black Primer for ASTM A234 WPB reducing tee
