PE Coated Pipe Bend ASTM A106B
Carbon Steel Seamless Fittings
We are manufacturer, exporter of Carbon Steel Seamless Fittings and supplies OD 530mm ASTM A106B 35 Degree PE Coated Pipe Bend R=4D for Gas Pipeline.They are used for connecting 3PE Pipeline which under ground.
The External Polyethylene Coated SS316L Elbows have the advantage of good antiseptic property, low water-absorption, and high mechanical strength. PE Anti-corrosive Elbows can be used to transfer water, gas and oil.
PE Coated Pipe Bend Dimensions
Size: 530mm
Degree: 35 Degree
End Type: BW
Technical: Seamless
Material: ASTM A106B
Standard: ASME B16.9
Carbon Steel Pipe Bend
Package
Put all OD 530mm Pipe Bends into free fumigation wooden pallets.
Butt Weld Pipe Bend

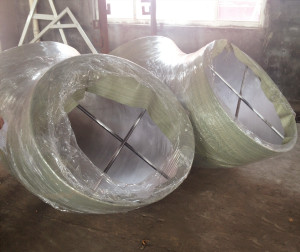

Inspection
Inspecting A106B Butt Weld Bend according to ASME B16.9 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
Carbon Steel Pipe Fittings Dimensions
Standard | ASME/ANSI B16.9 |
---|---|
Diameter | 1/8 to 48 inch / DN6-DN1200 |
Pressure | 3000lb, 6000lb, 9000lb |
Product | 90 Degree Elbow, Full Coupling and Half Coupling, Equal Tee , Reducing Tee, Pipe Cap , Stub End, PE Coated Pipe Bend |
Material | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |

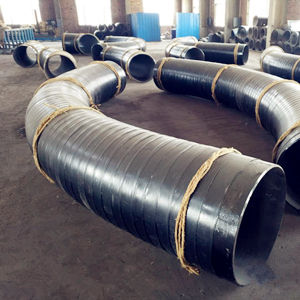

Carbon Steel PE Coated Pipe Bend
Surface Treatment
Normalizing Heat Treatment
We will use cold wrapping on all Carbon Steel Butt Weld Fittings before delivery.
Coating
PE, 3PE, Hot Dip Galvanized Coating is available for carbon steel pipe bend.
PE Coated Pipe Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Steel Pipe Bend and Pipe Elbow
Function
Steel pipe elbow and bend has the same function that change the direction of pipeline. But pipe bend has more flexible form, the degree and radius can be custom-made on site and suited for a specific need.
Radius
Minimum bending radius of pipe bend is 1.5 times of diameter, which is the maximum of pipe elbow. It is the basic difference between pipe elbow and pipe bend.
Length
The most intuitive difference is the length. Elbow relatively shorter than bend.
Price
Pipe bend can use bending machine to bend by straight pipes. It is one-time completed and don’t need second corrosion. However, pipe elbow has longer order cycle so that it is expensive than pipe bend. But elbows have higher cost performance.
ASTM A106 B Properties
Chemical Composition, %
C | Mn | P | S | Si | Cr | Mo | Ni |
---|---|---|---|---|---|---|---|
0.3 | 0.29-1.06 | 0.035 | 0.035 | 0.1 | 0.4 | 0.15 | 0.4 |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation (Longitudinal / Transverse) |
---|---|---|
415 MPa | 240 MPa | 22/12 % |
