NPT Threaded Hex Bushing 3000LB

What is a Threaded Bushing

NPT Threaded Hex Bushing is a short pipe with internal and external threads and hex head, it is used to connect two pipe with different diameter.

Threaded bushing is available in various threads, such as NPT and BSP. NPT is American threads and very prevalent internationally. The head shape is also diverse, it could be hex head, round head or flush.

Zizi is China leading forged fittings manufacturer and supplier, we export threaded bushings to Southeast Asia, Africa, Latin America, Oceania and Europe.

How to Order NPT Threaded Hex Bushing

Standard: ASME B16.11

Diameter: 2” X 1”

Pressure: 3000LB

Thread: NPT

Material: ASTM A105N

Quantity: 214

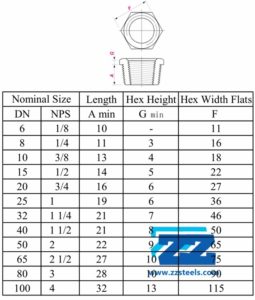

Threaded Hex Bushing Dimensions

Standard ASME/ANSI B16.11, BS3799, GB/T14626
Diameter 1/8″, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure 3000lb, 6000lb, 9000lb
Thread NPT and BSP (BSPP, BSPT)

"<yoastmark

Material of NPT Threaded Hex Bushing

Nickel Alloy NPT Hex Bushing
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Stainless Steel NPT Hex Bushing
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel  NPT Hex Bushing
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel  NPT Hex Bushing
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel NPT Hex Bushing
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel NPT Hex Bushing

ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)

ASME B16.11 Threaded Fittings

Inspection

  1. NPT Threaded Hex Bushing is inspected according to ASME B16.11
  2. Check the marking, surface, dimensions and threads.

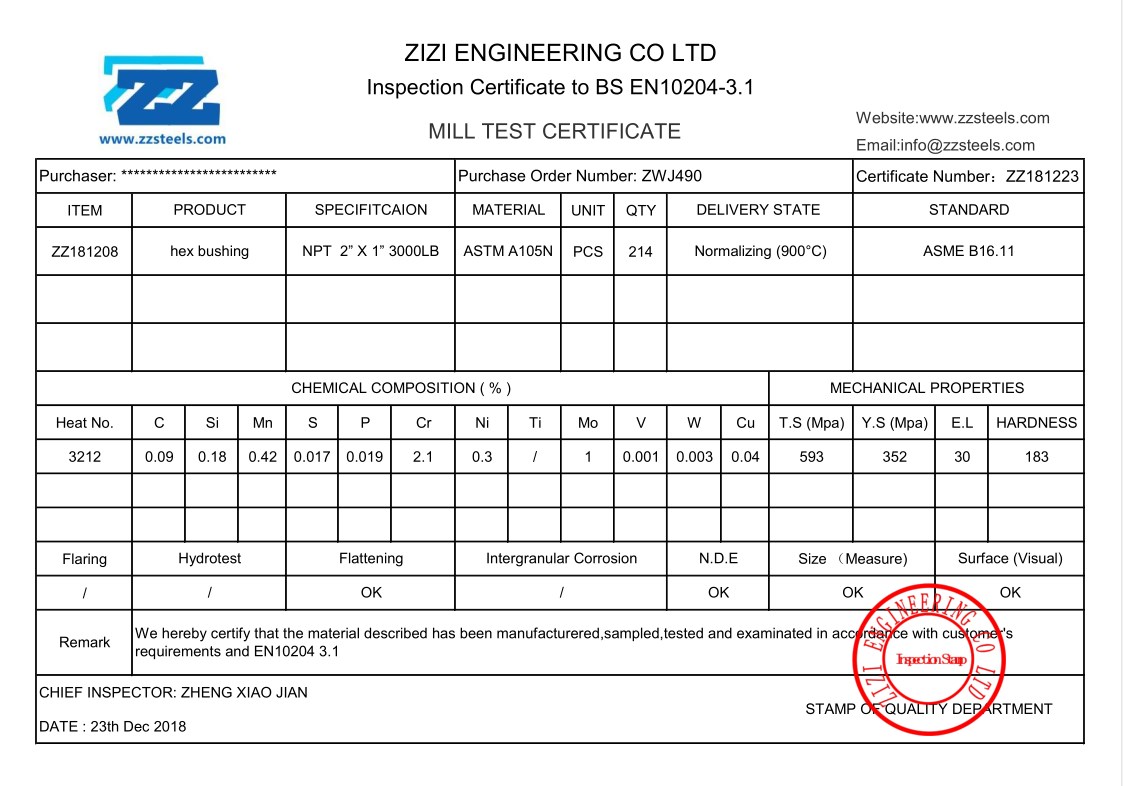

  3. Third party inspection: BV, LR, ABS, Mill Test Certificate.

Package

  • Anti-rust oil
  • Plastic Bag
  • Carton Box
  • Wooden Case

Hex Head Bushing VS Hex Head Plug

Their are very similar in appearance, but there are still some difference to distinguish them.

Hex head bushing is a hollow pipe with male and female threads, while hex head plug is a solid pipe with male threads only. And the former is more common in reducing type, while the latter is equal in size.

What’s more, their function is different. NPT Threaded Hex Bushing is used to connection pipes, however, threaded plug is used to block off pipeline at the end.

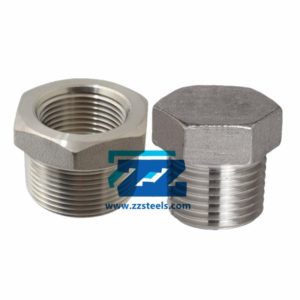

Hex bushing & Plug

Hex bushing & Plug

Application

  • Power Plant
  • Engineering
  • Chemical
  • Oil
  • Metallurgy
  • Fertilizer
  • Papermaking
  • Medicine

ASTM A105/A105N Properties

Chemical Compostion, %

C Mn Si P S Ni Cr Mo
0.08-0.15 0.3-0.6 0.15-0.5 0.025 0.025 0.5 2-2.5 0.9-1.1

Mechanical Properties

Tensile Strength Yield Strength Elongation
485 MPa 250 MPa 22%
