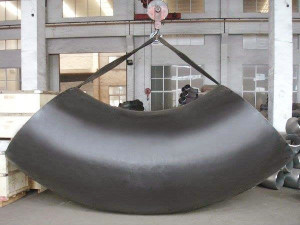

A234 WPB 90° Elbow 16″ LR Sch20

A234 WPB 90°Elbow

We are manufacturer of A234 WPB 90° Elbow and supply High Quality Carbon Steel Butt Weld Elbows in both large and small quantities.

A234 WPB Pipe Fittings are butt welding ends, commonly used to be welded with the Steel Pipes of A106, A53,GR.B material,or API 5L GR.B material.

Professional and advanced Seamless Elbow Production Line and produced Seamless Elbow 16″ 90° LR BW Sch20 A234 WPB for Philippines.



Long Radius 90 Degree Elbow Dimensions

Size: 16 Inch

Thickness: Schedule 20

End Type: BW

Surface: Black Painting

Material: ASTM A234 WPB

Exw Price: USD15/PCS

ASTM A234 WPB Chemical Composition

C Mn P S Si
0.3 0.29-1.06 0.05 0.058 0.1

ASTM A234 WPB Mechanical Properties

Tensile Strength Yield Strength Elongation (%)
415-585 (Mpa) 240 (Mpa) 22

Pipe Elbow Fitting

A234 WPB 90° Elbow Type

  • Connection

Butt Weld Elbow, Threaded Elbow, Socket Weld Elbow

  • Shape

Straight 90 Degree Elbow and Reducing 90 Degree Elbow

Butt Weld Fittings – A234 WPB 90° Elbow

A234 WPB 90° Elbow

A234 WPB 90° Elbow

Standard ASME B16.9
Diameter DN20 to DN1500/ 3/4” to 60”
Schedule Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS
A234 Fittings 90 Degree Elbow, 45 Degree Elbow, A Equal Tee,  Reducing Tee,
Pipe Cap, Concentric Reducer, Eccentric Reducer, Stub End
Stainless Steel ASTM A403 WP304/304L,316/316L, 321, 310S, 317,347
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S32760
Carbon Steel ASTM A234 WPB, A420 WPL3,WPL6, WPL9,
WPHY42, WHPY52, WPHY60, WHPY65, WPHY70.
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

A234 WPB Pipe Fittings

Inspection

Inspect A234 WPB 90° Elbow according to ASME B16.9 Standard

Quality controller check the diameter, thickness, tolerance and marking

Third party inspection: BV, SGS, LR, DNV, ABS and approve inspection certificate

16 inch Long Radius Elbow

Package

Wrapped plastic film on 16 Inch A234 WPB 90° Elbow and packed them on pallet.

Carbon Steel Pipe Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, 40HQ

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola

Middle East: Saudi Arabia, Qatar, Israel, Egypt

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador

Oceania: Papua New Guinea, Australia, New Zealand

Europe: Greece, UK, Poland, Ukraine, France, Spain
