Copper Nickel Union

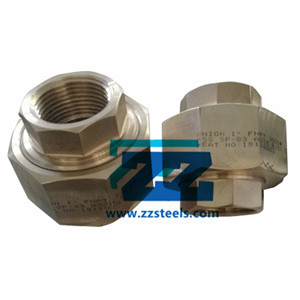

Zizi offers 1” Class 3000 70/30 copper nickel union for Malaysia and we have lots of MSS SP 83 Class 3000 threaded union in stocks.

70/30 Copper nickel threaded fittings contain 70% copper and 30% nickel, and small amount of other elements. Copper nickel union is known for the excellent resistance to various corrosion such as sea water, erosion and impingement. Its weld-ability, hardness and thermal conductivity are better than stainless steel pipe fitting.

As a manufacturer of forged steel pipe fittings, we offer threaded fittings in a wide range of size, pressure, thread and materials to meet the requirements of customers.

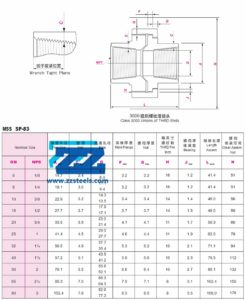

MSS SP 83 Union Dimensions

Diameter	1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure	3000LB, 6000LB, 9000LB
Type	Socket Weld and Copper Nickel Threaded Fittings
Thread Type	NPT, BSPP, BSPT, GI, PT

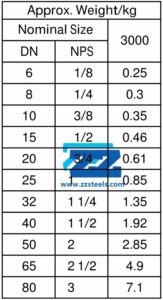

Class 3000 Threaded Weight

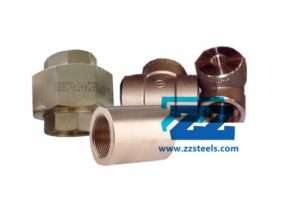

Copper Nickel Threaded Fittings Catalog

90 Degree Elbow and 45 Degree Elbow

Eequal Tee and Reducing Tee

Half Coupling and Full Coupling

Copper Nickel Union

Threaded Nipple, Hex Nipple

Cap

Materials for Forged Threaded Fittings

Copper Alloy Threaded Fittings

ASTM / ASME SB 111 UNS NO. C 10100, C 10200 , C 10300 , C 10800 , C 12000, C 12200, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C71500 ( CU -NI- 70/30)

Nickel Alloy Threaded Fittings

NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276

Stainless Steel

ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347, F347H, F454L

Duplex & Super Duplex Steel

ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel

ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91

Copper Nickel Threaded Fittings VS Stainless Steel Threaded Fittings

Copper nickel threaded fittings and stainless steel fittings both have excellent corrosion resistance, they still have many differences. The former is mainly composed of copper and nickel,the latter refers to a steel type that is resistant to weak and media corrosive such as air, steam, or water, or has rust. All stainless steel fittings have good acid resistance, but not all copper nickel fittings are good at acid corrosion resistance.
