Copper Nickel 90/10 Fittings Eccentric Reducer
Copper Nickel 90/10 Eccentric Reducer
Qualified manufacturer Zizi exports Copper Nickel 90/10 Fittings in customized sizes to Peru, those fittings are 8” x 6” STD eccentric reducer and some threaded fittings.
Eccentric reducer is buttweld fitting and has the function to connection pipes with different diameter while keeps pipes stay at the same level because of its offset center line. Cu-Ni 90/10 pipe reducers have good performance and rust resistance, they are popular in marine application.
Zizi is one of the China leading supplier of copper nickel alloy pipe fittings in buttweld, socket weld and threaded end.
What is Copper Nickel 90/10?
Copper Nickel 90/10 (Cu-Ni 90/10), UNS code is C70600. From the name we can see it mainly contains 90% copper and 10% nickel, as well as other small but important elements to improve its mechanical properties and corrosion resistance.
This alloy also has great ductility, toughness, excellent fabrication and welding ability.
Specification of Eccentric Reducer
Product: Eccentric Reducer
Connection: Buttweld
Standard: ASME B16.9
Diameter: 8” x 6”
Wall Thickness: STD
Type: Seamless
Material: Cu-Ni 90/10 (Copper Nickel Alloy UNS C70600)

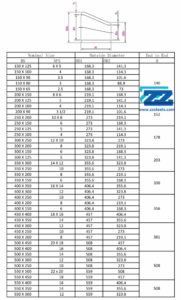

Buttweld Fittings Dimensions
Standard | ASME / ANSI B16.9, SY/T0510, HG/T21631, SH3408, GB/T13401, GB/T12459 |
---|---|
Diameter | NPS 1/2 to NPS 48, DN15 to DN1200 |
Schedule | Sch 10S, 20, STD, 40 XS, 80, 120, 160, XXS Cu-Ni 90/10 Fitting |
Stainless Steel | ASTM A403 WP304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347 |
Carbon Steel | ANSI / ASTM A234 WPB, A420 WPL3,WPL6, WPL9, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70, |
Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
Duplex Steel | S 31803, S 32205, S 32550, S 32750, S32760 |
Copper Nickel Alloy | Copper Nickel Alloy UNS C70600, UNS C71500, Cupro Nickel (Cu-Ni) 90/10, Cupro Nickel (Cu-Ni) 70/30 |

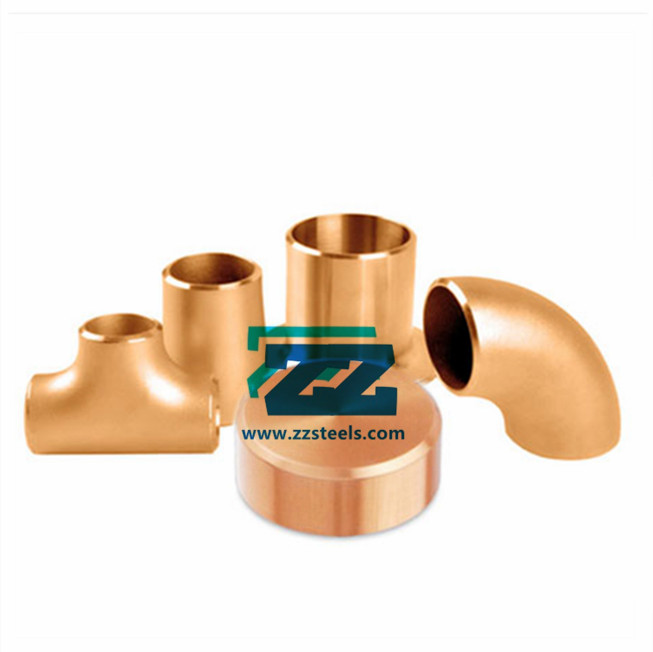

What are copper nickel 90/10 fittings?
Cu-Ni 90/10 Buttweld Fittings
90 Degree elbow, equal tee, concentric and eccentric reducer, pipe cap, sutb end, bend, weldolet
Socket weld fittings
45 Degree Elbow, reducing tee, end cap, coupling, union, sockolet
Threaded Fittings
180 Degree Elbow, tee, cap, half coupling, union, hex head plug, bushing, threadolet
Cu-Ni 90/10 Fittings Application
- Seawater System
- Desalination
- Petroleum
- Chemicals
- Heat Exchangers
- Shipbuilding
- Power Station
Why choose us
- Raw material: Sufficient reserves and diverse
- Dimensions: large options and accurate
- Manufacturer Standard: ASME, DIN, JIS,
- ISO Certified Manufacturer
- MTC BS EN10204-3.1 issued
- Large inventory for materials and products
Cu-Ni 90/10 Properties
Chemical Composition, %
Cu | Ni | Pb | Mn | Fe | Zn |
---|---|---|---|---|---|
88.6 min | 9-11 | 0.05 max | 1 max | 1.8 max | 1 max |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
551 MPa | 241 Mpa | 30 % |
