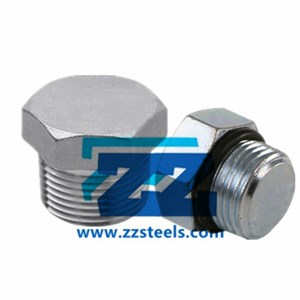

Hex Head Plug ASME B16.11

Best price for BSPP Hex Plug ASME B16.11, we offer 3000# and 6000# threaded plug in the most competitive price. Dimensions can be customized.

Hex head plug is a threaded fitting that used to stop pipe flow. It is more common in small diameter pipe system which is under 4inches. Pipe cap and blind flange have the same function with it.

Zizi is China leading manufacturer of steel pipe fittings and flanges, we export forged flanges, butt weld fittings, threaded fittings and socket weld fittings by customized dimensions.

BSPP Hex Plug Dimensions

Standard	ASME B16.11, BS 3799,GB/T14626
Dimensions	1/8″ to 4″ / DN6 to DN100
Pressure	3000lb, 6000lb, 9000lb
Thread	NPT, BSPP Plug, BSPT, Female and Male

Types of Threaded Plug

Based on the shape of the head, they are divided into three types:

• Hex Head Plug
• Square Head Plug
• Round Head Plug

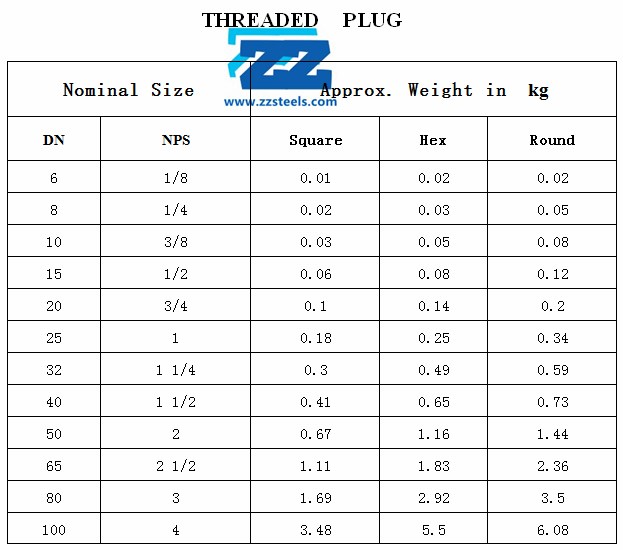

Weight of Threaded Plug

Material Grade of BSPP Plug

Stainless Steel: ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347

Carbon Steel: ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70

Alloy Steel BSPP Hex Plug: ASTM A182 F1, F5, F9, F11, F12, F22, F91

Duplex Stainless Steel: ASTM A182 F51, F53, F55, F60

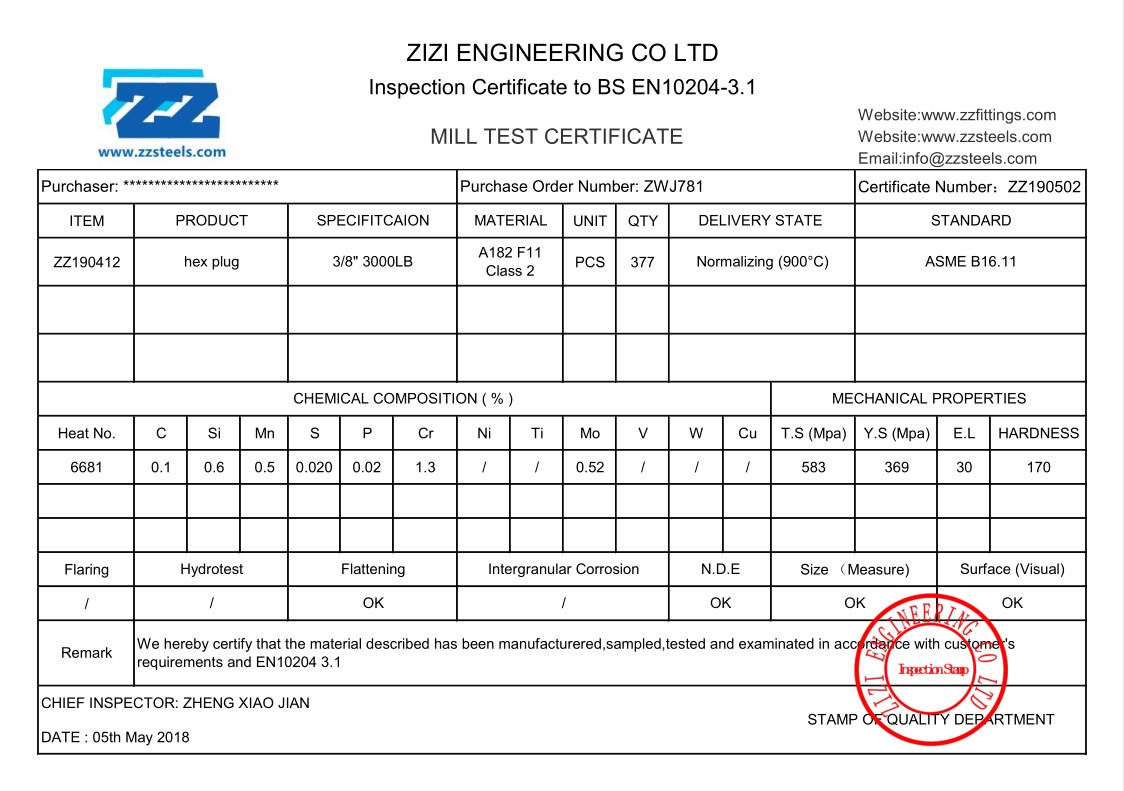

A182 F11 Threaded Plug Specification

Type: Hex Plug

Size: 3/8”

Pressure: 3000LB

Threaded: BSPP Plug

Material: ASTM A182 F11 Class 2

Standard: ASME B16.11

Inspection of BSPP Hex Plug

1. Check if the marking is correct and clear. Marking is ” 3/8 BSPP Plug A182 F11 B16.9” due to the limited space.
2. Touch and visual check the appearance to remove damaged article.
3. Measure the size and make sure they are in tolerance.
4. Test the BSPP thread with go/no go gauge.

Advantages of Threaded Fittings

• BSPP Hex Plug is Easy usage
• Quick installation
• High quality
• Leak-proof

Application

• Pharmaceutical Equipment
• Chemical Equipment
• Off-Shore Oil Drilling Companies
• Power Generation
• Petrochemicals
• Pulp and Paper Industry
