BSP Threaded Nipple

Leading manufacturer of forged steel pipe fittings Zizi exports BSP threaded nipple TBE 2 x 2 SCH 40 L=100 ASTM A694 F52 ASME B16.11 to Philippines. We have exported our products for more than 30 countries.

Pipe nipples are widely used fitting in industrial pipelines, they have various forms but threaded nipple is more common. The material of pipe nipples are best keep in line with the pipeline.

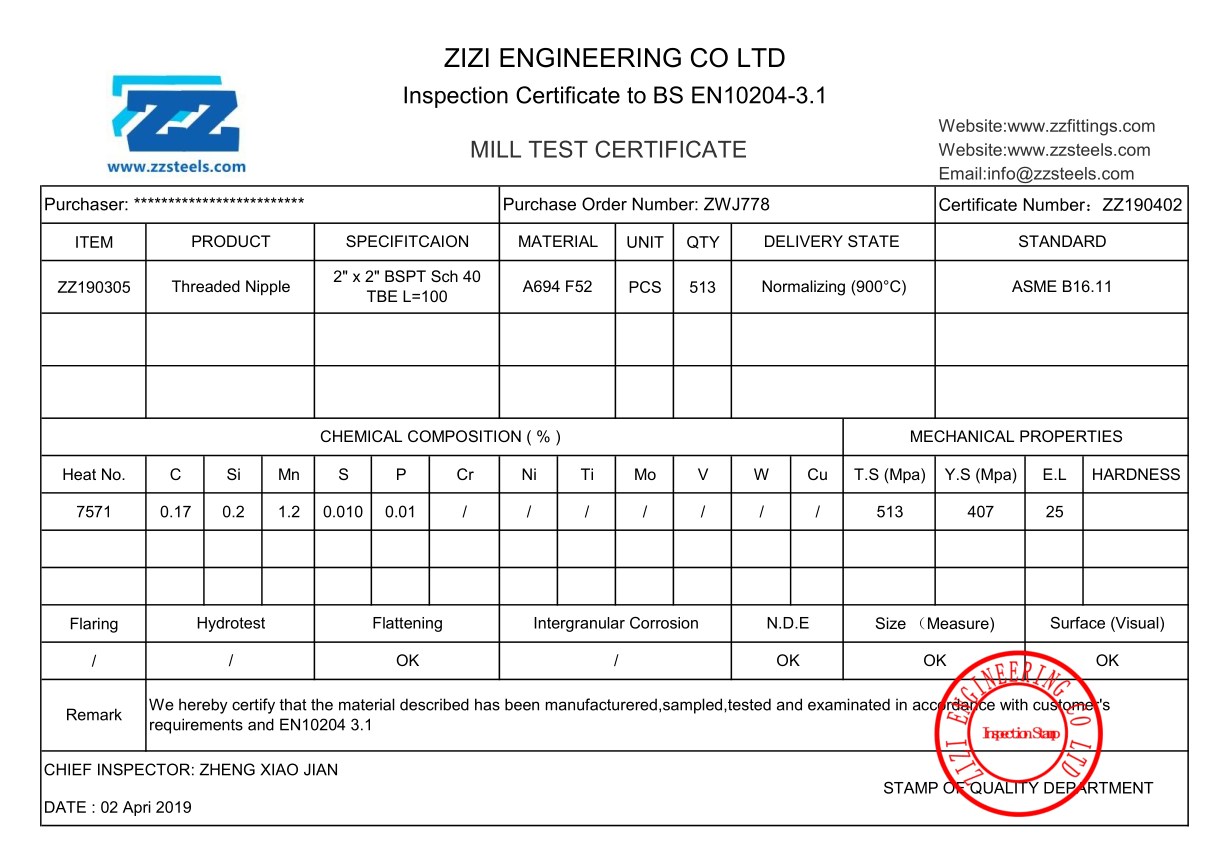

Zizi is a ISO certified manufacturer and we obtained many cetificate such as TUV, BV and IQNet. Our products cover forged threaded fittings, forged socket weld fittings, wrought fittings and forged flanges. They are all high quality and supplied with MTC.

BSP Threaded Nipple Dimensions

Standard: ASME B16.11

Type: BSP Nipple TBE

Diameter: 2”

Schedule: SCH 40

OD of Pipes: 60.3

Length of Thread: 19.2

Length of Nipple: 100

Material: ASTM A694 F52

Surface Treatment: Normalizing

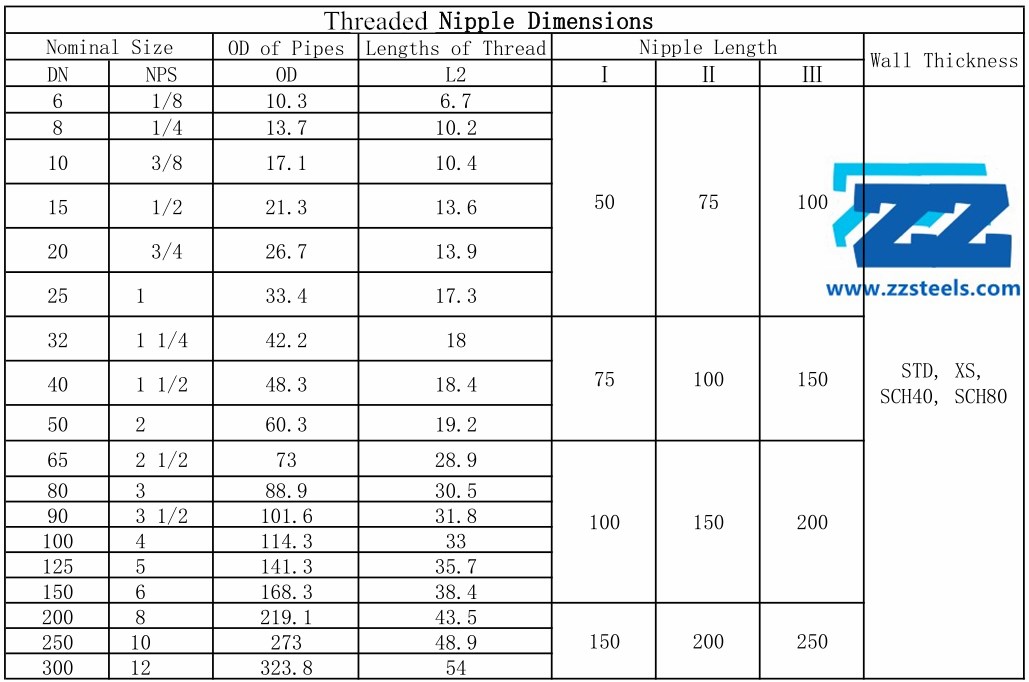

BSP Threaded Nipple Dimensions

BSP Threaded Nipple Dimensions

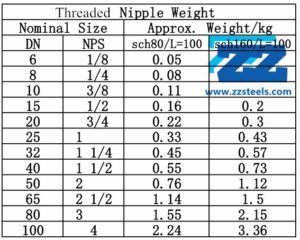

Weight of Nipple Threaded Both End

Threaded Nipple Weight

Threaded Nipple Weight

Types of Pipe Nipple

There are various types of nipple is available in BSP thread:

  • BSP Barrel Nipple
  • Close Nipple
  • Hex Nipple
  • Reducing / Unequal Nipple
  • Swage Nipple
  • Welding Nipple

Threaded Nipple Dimensions

Standard ASME B16.11 / B36.19,  API-5L-B
Diameter 1/8” to 12”, DN6 to DN300
Wall Thickness Sch 40 / STD, Sch 80 / XS BSP Threaded Nipple
Length L= 50, 75, 100, 150, 200, 250 or As Customer Demand
Thread NPT, BSPP, BSPT, GI, PT
End TOE, TBE

Material for BSP Threaded Nipple

Stainless Steel: ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347

Carbon Steel: ASTM A105/A105N, A350 LF2/LF3, A694 F52 BSP Nipple, F65, F70

Alloy Steel: ASTM A182 F1, F5, F9, F11, F12, F22, F91

Duplex Stainless Steel: ASTM A182 F51, F53, F55, F60

What is TBE Nipple?

TBE is an acronym for Threaded Both End.

Pipe nipple is a short piece of pipe, and its end can be threaded, plan or beveled. The threads are provided to one end or both end.

The one end threaded type can be acronym as TOE.

What is BSP Nipple?

BSP thread means British Standard Pipe Thread, is a common used thread type. The thread angle is 55 degrees.

BSP Threads has taper and parallel type, the former called BSPT, the latter is BSPP.

ASTM A694 F52 Specification

Chemical Composition,%

C Mn P S Si
0.3 1.5 0.03 0.03 0.15-0.37

Mechanical Properties

Tensile Strength Yield Strength Elongation
415 MPa 315 MPa 20%
