ASTM A182 Gr304 Blind Flange PN16
304 Stainless Steel Industrial Flange
Top quality manufacturer, supplier of stainless steel flange Zizi offer 6 Inch ASTM A182 Gr304 Blind Flange PN16 RTJ ASMB B16.5 for Uruguay.
We produced Stainless Steel Industrial Flanges in different size for customers, and we are certified to cater to the challenging requisites of a number of industries through our outstanding products and attentive services.
Blind flanges, available in all sizes and pressure ratings, are solid forgings used to close off the end of a piping system and to gain easy access to the interior of the line.

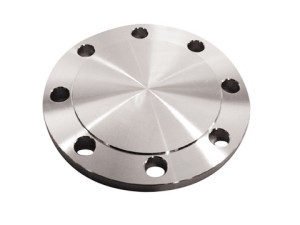

A182 Gr304 Blind Flange Dimensions
Size: 6 Inch
Pressure: PN16
Seal Type: RTJ
Standard: ASME B16.5
A182 Gr304 Blind Flange Dimensions
ASME B16.5 Forged Flanges
Inspection
Inspecting A182 Stainless Steel Forged Blind Flange according to ASME B16.5 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A182 Gr304 Chemical Composition
| C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.035 | 2 | 0.75 | 0.045 | 0.03 | 18-20 | 8-11 |
ASTM A182 Gr304 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515 (Mpa) | 205 (Mpa) | 40 (%) |
Stainless Steel Grade 304 Industrial Flanges
Surface Treatment
All stainless steel blind flanges are picking and solution heat treatment before delivery.
Flange Dimensions
| Standard | ASME B16.5, API 5A |
|---|---|
| Diameter Range | 1/2 to 24 inch / DN15-DN600 |
| Pressure Rate | Class 150, 300, 600, 900, 1500, 2500 |
| Product | Slip On Flange, Threaded Flange, Socket Weld Flange, Blind Flange, Lap Joint Flange, Weld Neck Flange. |
| Stainless Steel | ASTM A182 F316, F316L, Gr304/304L, SS317, SS321, SS310 |
| Duplex Steel | ASTM A182 F51, F53, F55 |
| Carbon Steel | ASTM A105N, A350 LF2/LF3. A694 F60, F65, F70, F52 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22 ,F91 |
Pipe Flange 6 Inch
Package
Packed 6 Inch ASTM A182 Gr304 Blind Flanges into wooden case.
Pipe Flanges and Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia, Philippines, Kazakhstan.
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Tanzania, South Africa.
Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman, Yemen, Jordan, Lebanon.
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia, Argentina, Paraguay.
Oceania: Papua New Guinea, Australia, New Zealand, Solomon Islands, Fiji.
Europe: Greece, UK, Poland, Ukraine, France, Spain, Portugal, Norway, Sweden.
