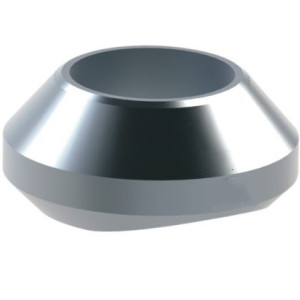

ASTM A182 F51 Weldolet
Forged Outlet Fittings
Quality manufacturer, supplier, exporter Zizi supplies DN250X65 WELDOLET MSS-SP-97 BE ASTM A182 F51 LOW TEMP SCH60 X SCH40S for Colombia.
Weldolet is a reinforcing Pipe Fitting which replaces the traditional branches connecting method. The features are safety, reliability, simple to installation and low cost.
Our Forged Fittings are including Threaded Flanges, Concentric Swage, Threaded Unions, Socket Weld Couplings, Pipe Nipple, Threaded Cap.
ASTM A182 F51 Weldolet Dimensions
Size: DN65
Thickness: Sch 40S
Standard: MSS-SP-97
Technics: Forged Steel Fittings

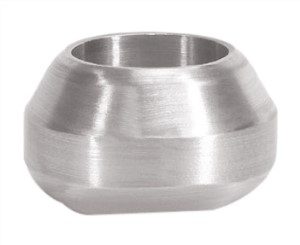

ASTM A182 F51 Weldolet Dimensions
MSS-SP-97 Forged Weldolet
Inspection
Inspecting Forged Weldolet according to MSS-SP-97 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A182 F51 Chemical Composition
| C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.03 | 2 | 1 | 0.03 | 0.02 | 21-23 | 4.5-6.5 | 2.5-3.5 |
ASTM A182 F51 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 620 (Mpa) | 450 (Mpa) | 25 (%) |
Duplex Steel F51 Pipe Weldolet
Surface Treatment
All duplex steel forged pipe weldolet are normalized heat treatment and surfaced with oil before delivery.
ASME Weldolet Dimensions
| Standard | ASME/ANSI B16.11 MSS-SP-97 |
|---|---|
| Diameter Range | 1/8 to 4 inch / DN6-DN100 |
| Pressure Rate | XS, SCH160, XXS |
| Outlet Types | Weldolet, Threadolet and Sockolet |
| Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
| Duplex Steel | ASTM A182 F51, F53, F55 |
| Carbon Steel | ASTM A105N, A350 LF2/LF3 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22 ,F91 |
DN65 Weldolet
Package
Packed DN65 ASTM A182 F51 Weldolet into plastic bag and then put into carton.
ASTM A182 Forged Steel Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
ASTM A182 F51 PROPERTIES
Chemical Composition
| C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.03 | 2 | 1 | 0.03 | 0.02 | 21-23 | 4.5-6.5 | 2.5-3.5 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 620 (Mpa) | 450 (Mpa) | 25 (%) |
