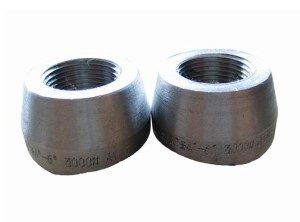

ASTM A105N Forged Thredolet
Carbon Steel Pipe Olet
Carbon steel threaded outlet manufacturer Zizi supplies ADN80 × DN40 ASTM A105N Forged Thredolet NPT 3000# MSS-SP-97 for Uruguay by air.
MSS-SP-97 Olets are increasingly widespread used in pipes with high pressure, high temperature, large diameter, or thick wall. It replaces traditional branch connection way and has advantages of safety, reliable, low cost, simple construction, and easy to use.
ASTM A105N Forged Thredolet Dimension
Size: DN80 x 40
Pressure: 3000#
End Type: NPT
Standard: MSS SP-97
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Inspection of ASTM A105N Thredolet
QA/ QC person measure the size, thickness, make sure in the tolerance.
Visual surface and check marking of ASTM A105N Thredolet
Third party inspection: BV, SGS, LR, DNV, ABS and stamp on mill test certificate.
Outlet Dimensions
Standard | ASME/ANSI B16.11 MSS-SP-97 |
---|---|
Diameter Range | 1/8 to 4 inch / DN6-DN100 |
Pressure Rate | 3000# and 6000# |
Outlet Types | Weldolet, Forged Thredolet and Sockolet |
Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
Duplex Steel | ASTM A182 F51, F53, F55 |
Carbon Steel | ASTM A105N, A350 LF2/LF3 |
Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22 ,F91 |

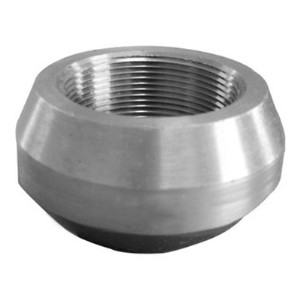

ASTM A105N Forged Thredolet
Surface of NPT Thredolet
Normalizing Heat Treatment
We will use Anti-rust oil on all Forged Steel Fittings before delivery.
Package of 1 1/2″ Thredolet
Lining up the DN80 x 40 Thredolet in carton and Marking List on Each Carton.
Packed all cartons of ASTM A105N Forged Thredolet into free fumigation wooden cases.
Export Country of Forged Pipe Fittings
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
ASTM A105N Properties
Chemical Composition
C | Mn | P | S | Si |
---|---|---|---|---|
0.15 max | 0.6-1.05 | 0.035 | 0.04 | 0.1 min |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
485 (Mpa) | 250 (Mpa) | 30 (%) |
