Large Diameter Forged Flanges

Zizi is manufacturer of forged flanges and we supply ASME B16.5 flanges and ASME B16.47 Blind flange and weld neck flanges worldwide.

ASME B16.47 Flanges are large diameter flanges. Unlike ASME B16.5 Flanges, it mainly covers two kind of flanges: blind flanges and weld neck flanges.  Forged flanges are high quality and good performance, they can bear high pressure and temperature. Blind flange is s solid disc with bolt holes, it has the similar function with pipe fitting plug and pipe cap.

Zizi offer various flange types including weld neck flange, slip on flange, lap joint flange, threaded flange, socket weld flange, blind flange and spectacle blind flange.

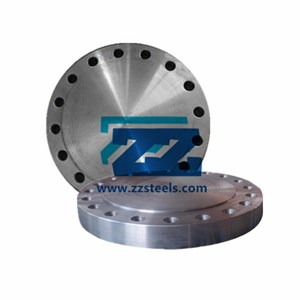

300# RF Blind Flange Dimensions

Standard: ASME B16.47

Flange Type: Blind Flange

Size: 28” Class 300

Seal Face: Raised Face

Material: ASTM A335 P9

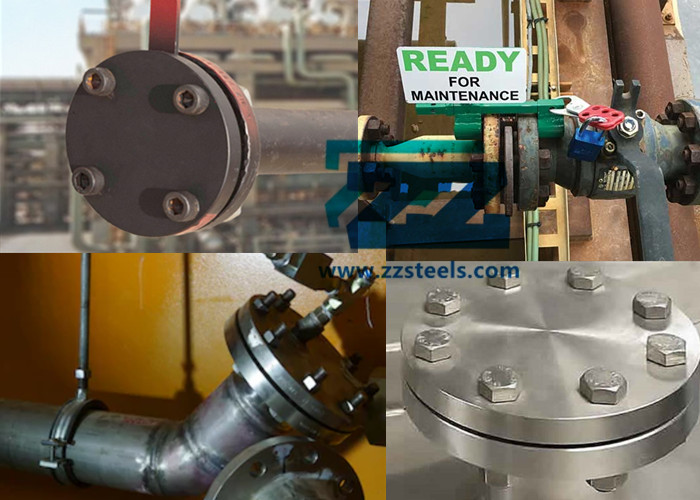

What is A Blind Flange Used For?

Blind Flanges are usually used at the end or branch of pipeline to block off pipes and stop the flow. In petrol, chemical, engineering, public services and water works industries it is very common and useful. It is also suitable for making inspection or repairs to pipelines.

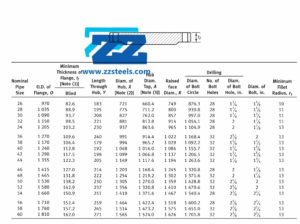

ASME B16.47 Series A Flange Dimensions

Standard	ASME / ANSI B16.47
Dimension	26” to 60”, DN970 to DN1810
Class	150, 300, 400, 600, 900
Seal	RF, FF, RTJ
Product	Blind Flange, Weld Neck Flange

Material of ASME B16.47 Blind Flange

Stainless Steel Blind Flange B16.47
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Blind Flange B16.47
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Blind Flange B16.47
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Blind Flange B16.47
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Blind Flange B16.47

ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Blind Flange B16.47
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Inspection of ASTM A335 P9 Flanges

Marking: the marking such as “ ASME B16.5 BL 28” 300# RF SCH40 717” should be clear and correct.

Surface: the surface should checked by eyes and hand to ensure they are even and smooth.

Dimensions: Measure the dimensions which defined in dimension chart and make sure they are in tolerance.

Differences Between ASME B16.47 and ASME B16.5

The biggest difference between ASME B16.47 Flange and ASME B16.5 Flange is their dimensions.

ASME B16.47 flanges stands for large diameter flanges, so their diameter at least is 26”. However, the ASME B16.5 flanges are within 24”.

What’s more, their pressure ratings is different. ASME B16.5 flange is available in class 150, 300, 600, 900, 1500 and 2500, while ASME B16.47 flange is available in class 150, 300, 400, 600 and 900.
