API X42 PSL2 LSAW PIPE

LSAW PIPE

We are manufacturer of Pipe and providing API X42 PSL2 LSAW PIPE 16″ x 0.875″ x 12.2m for Burma.

API X42 Pipe Feature

Size: 16″ x 0.875″

Length: 12.2m

Type: LSAW

Material: API 5L X42

Specification level: PSL2

What is LSAW Pipe?

LSAW is shortening of Longitudinally Submerged Arc Welding pipe, it uses leaflets plate as row material and is in molding machine pressure into using double-side submerged arc welding and flaring form production. This kind of steel pipe is available in a large range of specifications, it has advantages of good weld toughness, ductility, uniformity and dense, as well as high pressure resistance, low-temperature corrosion resistance, etc.

API X42 LSAW pipe is widely used in the construction of high strength, high toughness, high quality and long distance onshore and offshore oil and gas pipelines. It is also used in conveyance of flammable and nonflammable liquids, and as structural members in construction projects.

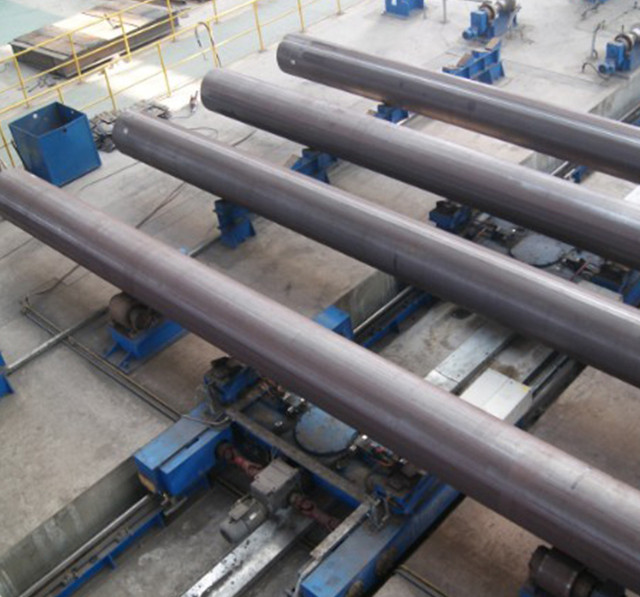

Large Diameter API 5L LSAW Pipe

X42 PSL2 Applications

Oil and Gas Pipeline
Construction of structure
Water Treatment
Thermal Industry
Bridge Building
Seawater Application

Size Range

Diameter: 16” to 60” (406mm to 1500mm)

Wall Thickness: Sch10 to Sch XXS

Length: Customized length

X42 API 5L

What is API 5L?

API 5L specifies the manufacture of two product levels (PLS 1 and PLS2) of seamless and welded steel pipe for the use of a pipeline in the transportation of petroleum and natural gas,

API X42 PSL2 Chemical Composition, %

Steel Grade	C	Si	Mb	P	S	V	Nb	Ti
X42R	0.24	0.4	1.2	0.025	0.015	0.06	0.05	0.04
X42Q	0.18	0.45	1.4	0.025	0.015	0.05	0.05	0.04
X42M	0.22	0.45	1.2	0.025	0.015	0.05	0.05	0.04

API X42 PSL2 Mechanical Properties

Grades	Yield Strength	Tensile Strength	Seam of Welded Pipe Tensile Strength
X42 PSL2	290-495	415-655	415

API X52 and X42 Pipe

API X52 and X42 are common used grades in API 5L, they are both widely used in petroleum and natural gas industries. The digit number following the X indicates the minimum yield strength of pipe produced to this grade. In another word, X42 has the min yield strength of 42 kilopounds/square inch and X 52 has the 52 kis.

API 5L X42 and X52 have PSL 1 and PSL 2 two specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability and so on.

LSAW Steel Pipe Manufacturer

Purchase High Quality Material

2. Advanced equipment and standardized production

3. Strict Quality Inspection for X42 PSL2 Pipes

In-factory Inspection, including appearance, dimensions, and materials.
Third Party Inspection: BV, SGS, LR, DNV, ABS

4. Certifications: ISO, CE, CI, PL, CO, BL, MTC for API X42 Pipe
