A105 Socket Weld Cap ASME B16.11
Carbon Steel Forged Fittings
Zizi Engineering is manufacturer & stockist of carbon steel socket weld fittings and supplies DN25 CAP SW 3000# A105 ASME B16.11 for Mexico.
The functions of caps are similar to plug, that is covering the pipe end to stop the flow. SW caps are mainly used for small pipe diameters, and DN25 is the most common size. Socket Weld Cap is one type of Forged Steel Fittings which manufactured according to ASME B16.11. Same as threaded caps.

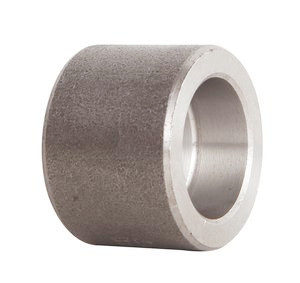

ASTM A105 Socket Weld Cap Dimensions
Exw Price: $2/pcs
Size: DN25
Pressure: 3000#
Standard: ASME B16.11
Technics: Forged Steel Fittings
ASME B16.11 Socket Weld Fittings
Inspection
Inspecting Socket Weld Cap according to ASME B16.11 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A105 Socket Weld Cap Chemical Composition
C | Mn | P | S | Si |
---|---|---|---|---|
0.15 max | 0.6-1.05 | 0.035 | 0.04 | 0.1 min |
ASTM A105 Socket Weld Cap Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
485 (Mpa) | 250 (Mpa) | 30 (%) |
Socket Weld Pipe Fittings Dimensions
Standard | ASME/ANSI B16.11 |
---|---|
Diameter | 1/8 to 4 inch / DN6-DN100 |
Pressure | 3000lb, 6000lb, 9000lb |
Product | 90 Degree Socket Weld Elbow, 45 Degree Elbow, Equal Tee and Reducing Tee, Socket Weld Union, Full Coupling, Half Coupling, A105 Socket Weld Cap. |
Stainless Steel | A182 F304/304L, F316/316L, SS317, SS321, SS310 |
Duplex Steel | A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S32760 |
Carbon Steel | ASTM A105, A350 LF2/LF3,A694 F52, F60, F65, F70 |
Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
Carbon Steel Forged Fittings
Surface Treatment
All carbon steel forged fittings are normalized heat treatment
We surfaced anti-rust oil on forged fittings before delivery.

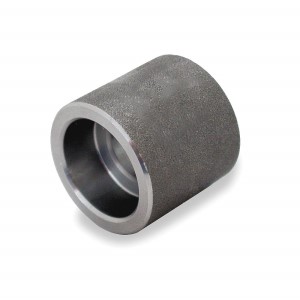

DN25 Forged Pipe Cap
Package
Lining up the DN25 Socket Weld Cap in cartons and make a list of each carton.
Packed all cartons into free fumigation wooden cases.
ASTM A105 Pipe Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, India, Indonesia, Malaysia, Thailand
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Mauritius, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia
Oceania: Papua New Guinea, Australia, New Zealand, Solomon
ASTM A105 Material
Chemical Composition
C | Mn | P | S | Si |
---|---|---|---|---|
0.15 max | 0.6-1.05 | 0.035 | 0.04 | 0.1 min |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
485 (Mpa) | 250 (Mpa) | 30 (%) |
