90 Degree Threaded Elbow Class 3000
90 Degree Threaded Elbow
High quality 3/4” 90 Degree NPT Threaded Elbow Class 3000 ASTM A182 F11 ASME B16.11 are in stock. They are ISO qualified and stored near to port.
Zizi is manufacturer and supplier of forged steel pipe fittings, we have been working on this for 9 years and exported our products for more than 30 countries. We product forged fittings in accordance with domestic and foreign standards, they all have Mill Test Certificate. We also engaged in forged flange and buttweld fittings manufacture and export.
Threaded Elbow Class 3000 Specification
Type: 90 Degree Elbow
Diameter: 3/4”
Pressure: Class 3000
End: NPT Female Thread
Material: ASTM A182 F11
Standard: ASME B16.11
Features of ASTM A182 F11 Pipe Fittings
- Durable
- Resistant to high pressure and temperature
- High mechanical properties
- Resistant to normal corrosion
- Easy installation
90 Degree Threaded Elbow Dimension
90 Degree Threaded Elbow Dimensions
Threaded Pipe Fittings Dimensions
| Standard | ANSI/ASME B16.11, BS 3799, GB/T14626 |
|---|---|
| Diameter | 1/8”, 1/4”, 3/8”, 1/2” 3/4” 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”, 3”, 4” |
| Pressure Ratings | Class 2000, 3000, 6000 |
| End | Male and Female Threads |
| Thread Type | NPT, BSPP, BSPT, GI, PT |
| Products | 90 Degree Elbow, 45 Degree Elbow, Equal Tee, Reducing Tee, Cross, Coupling, Pipe Cap, Plug. |
Materials of Forged Threaded Elbow Class 3000
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347
Carbon Steel: ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70
Alloy Steel : ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel: ASTM A182 F51, F53, F55, F60

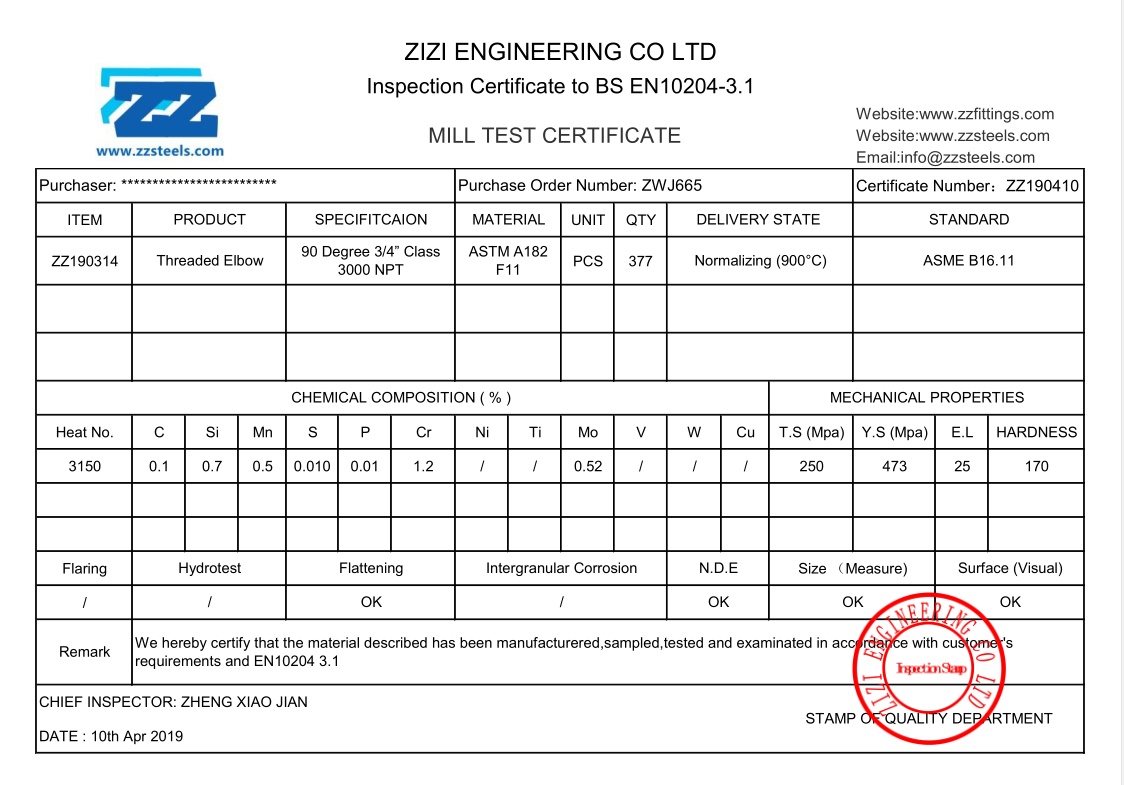

Inspection of 3/4″ 90 Degree Elbow
- Check the appearance by hands and eyes to remove forged elbows with flaws at the surface.
- Measure the size of outside diameter, center to end, wall thickness and length of thread, make sure they are in tolerance.
- Test the NPT threads with go/no go gauge.

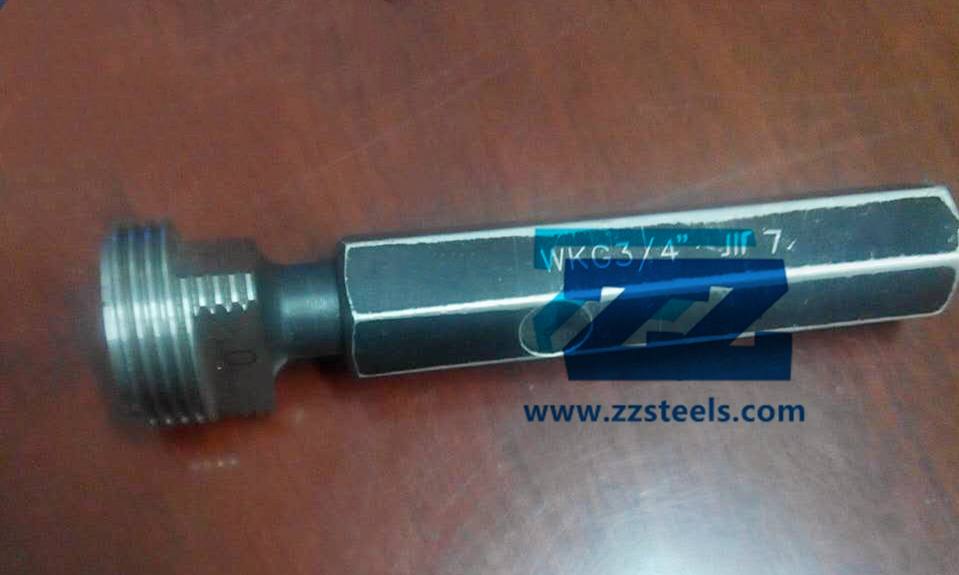

What is Go No Go Gauge
Package of Threaded Elbow Class 3000

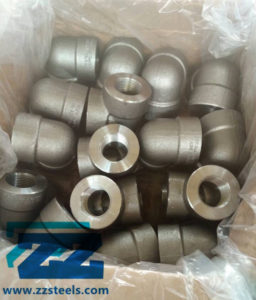

Threaded Elbow Class 3000 Package
- Painting anti rust oil at the surface.
- Wrap them in plastic film.
- pack 3/4” Elbow Class 300 into carton cases and label it.
- Put carton cases into wooden cases.
ASTM A182 F11 Properties
Chemical Composition, %
| C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.05-0.15 | 0.3-0.6 | 0.5-1 | 0.03 | 0.03 | 1-1.5 | 0.44-0.65 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 205 MPa | 415 MPa | 20 % |
