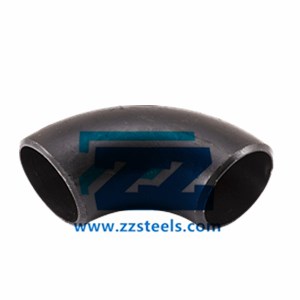

90 Degree Long Radius Elbow
1.5D 90 Degree Elbow
Zizi is manufacturer of 90 degree long radius from diameter 1/2” to 48”, we also offer 45 degree elbow, 180 degree elbow and short radius elbows in the same diameter range.
Long radius elbows also known as 1.5D elbow, because its radius is 1.5 times of the diameter. 90 degree elbow, 45 degree elbow and 180 degree all have long radius types as well as short radius type.
Radius larger than 1.5D (such as 3D, 4D) also called long radius elbow by customers, but we also call them pipe bend.
What the Difference Between LR Elbow and SR Elbow?
Both long radius and short radius elbow are available in the same degrees, dimension ranges and materials, but LR elbow has radius equal to 1.5D, while SR elbow has 1D radius.
90 Degree Long Radius Elbow Dimensions
Standard: ASME B16.9
Degree: 90 Degree
Technique: Seamless
Diameter: 12 Inch
Wall Thickness: Sch 80
Radius: LR
Outside Diameter: 323.8
Center to End: 457
Material: ASTM A860 WPHY60
Surface: Black Primer
90 Degree LR Elbow Weight
90 Degree LR Elbow Weight Chart
Types of Buttweld Elbow
Diameter: Equal / Straight Elbow, Reducing Elbow
Technique: Seamless Elbow, Welded Elbow
Degree: 30°, 45°, 60°, 90°, 180°……
Radius: Long Radius (LR), Short Radius (SR), R=3D, 4D, 5D, 6D……
Material: Stainless Steel Elbow, Carbon Steel 90 Degree LR Elbow, Alloy Steel Elbow
Butt Weld Elbow Specification
| Standard | ASME / ANSI B16.9, SY/T0510, HG/T21631, SH3408, GB/T13401, GB/T12459 |
|---|---|
| Diameter | NPS 1/2 to NPS 48, DN15 to DN1200 |
| Schedule | Sch 10S, 20, STD, 40 XS, 80 90 Degree Long Radius Elbow, 120, 160, XXS |
| Stainless Steel | ASTM A403 WP304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347 |
| Carbon Steel 90 Degree LR Elbow | ANSI / ASTM A234 WPB, A420 WPL3,WPL6, WPL9, A860 WPHY42, WHPY52, WPHY60 , WHPY65, WPHY70, |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
| Duplex Steel | S 31803, S 32205, S 32550, S 32750, S32760 |

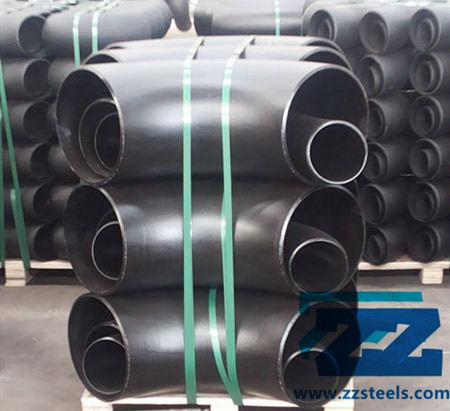

Package of Carbon Steel Buttweld Elbow
- Wrap 12” ASTM A860 WPHY60 elbow with plastic film
- Pack 90 Degree Long Radius Elbow on wooden Pallets.
- Carbon Steel Elbows larger than 12” will tied to wooden pallets, otherwise in wooden cases.
Package of 90 Degree LR Elbow
Application
- Oil and Gas
- Chemical Industry
- Paper Industry
- Heat Exchanger
- Off-Shore Oil Drilling Company

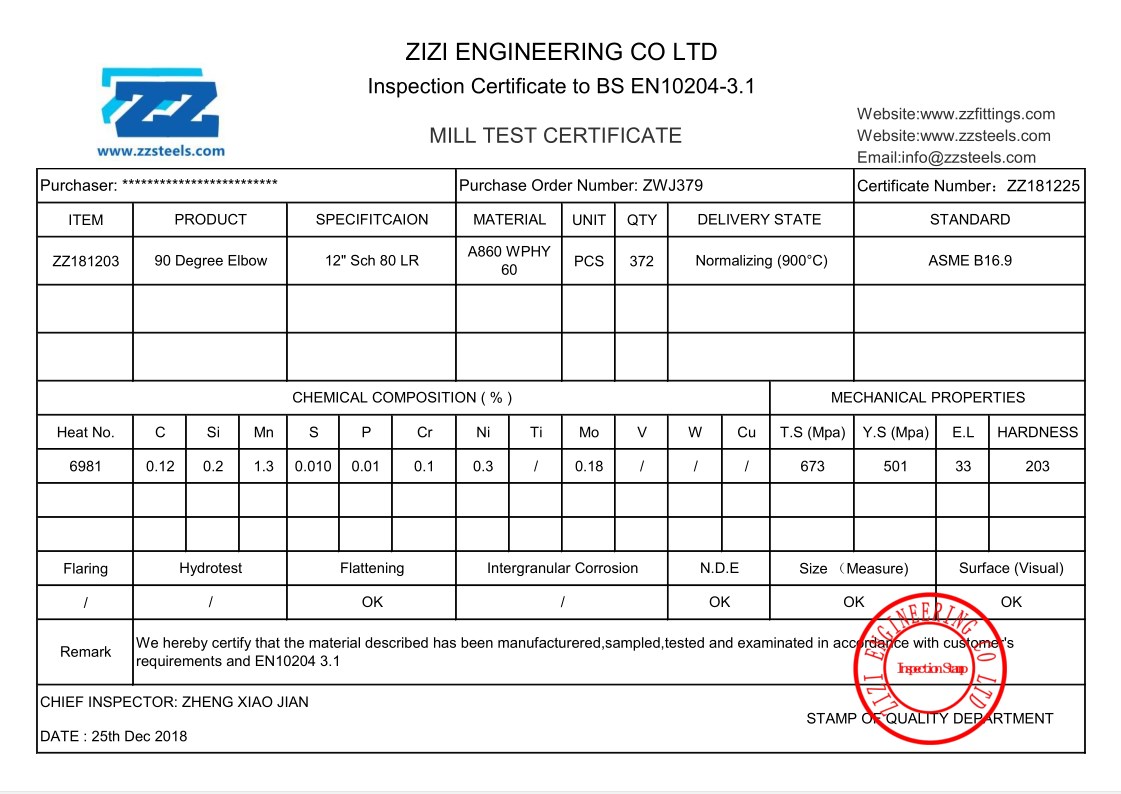

ASTM A860 WPHY60 Properties
Chemical Compositon,%
| C | Mn | P | S | Si | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|
| 0.2 | 1-1.45 | 0.03 | 0.01 | 0.15-0.4 | 0.5 | 0.3 | 0.25 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515-690 MPa | 415 MPa | 28 % |
