5 Inch A335 P22 Alloy Pipe

A335 P22 Alloy Pipe

We are manufacturer of Alloy Pipe and providing 141.3 x 6.55 x 9000mm ASTM A335 P22 Alloy Steel Pipe SMLS for Kelang Port.

We supply A335 alloy steel pipes with good strength and hardness, they  also resistance to wear and impact. It is a chrome moly alloy because of the chemical makeup of  Cr (Chromium) and Mo (Molybdenum), which helps a lot for enhancing the strength and elastic limit. The seamless alloy pipe available in  customized sizes and length, available in diverse coatings, we provide material test report and different mechanical test to ensure the quality.

5 Inch A335 P22 Pipe Specification

Size: 141.3 x 6.55mm

Length: 9000mm

Type: Seamless

Material: A335 P22 Alloy Steel

Lead Time: 10 Days are ready for shipping

Document: CI, PL, CO, BL, MTC

A335 P22 Material

Alloy Steel P22 Chemical Composition

C Mn P S Si Cr Mo
0.015 0.3-0.61 0.025 0.025 0.5 1.9-2.6 0.87-1.13

A335 P22 Pipe Mechanical Properties

Tensile Strength Yield Strength Elongation
415 205 30

Seamless Pipe Specification

5″ Alloy Steel Pipe Grades

ASTM A335, ASME SA335 P5 (b, c), P9, P11, P22, P91 Alloy Steel

Diameter

ASTM ASME & API 1/2” to 48”.

Wall Thickness

Sch 10S, 40, STD, 80, XS, 100, 120, 140, 160, XXS

Length

As customer requirement, max 16000mm

Sch40 Pipe & Sch80 pipe are the most commonly used pipe in commercial applications.

Marking

Each pipe will be marked with name, diameter, thickness, length, heat No, and material.

Package

Bare Package, Bundle Package, Wooden Cases, Wooden Pallet, protection at both sides of pipes, suitable protection for delivery as request.

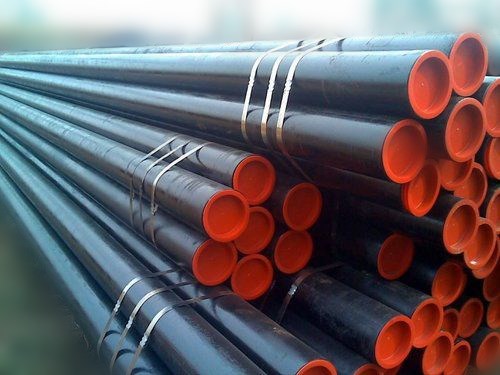

Alloy Steel P22 Pipe

Alloy Steel P22 Pipe

Inspection & Test for 5 Inch Pipes

1.Chemical Composition for P22 alloy steel pipes

2. Mechanical Properties Test, including Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test

3. Surface and Dimension

4. No-destructive Test, Hydrostatic Test

A335 P22 Pipe Application

A335 Alloy steel pipes are suitable for high temperature environment such as in following applications

  • Chemical equipment
  • Sea water equipment
  • Heat exchangers
  • Condensers
  • Pulp and paper industry
  • Off-shore oil drilling companies
