4 x 1/2 Inch A105 Sockolet 6000#

A105 Sockolet 6000#

We are manufacturer of Sockolet and providing 4 x 1/2 Inch A105 Sockolet 6000# SW for Malaysia.

Sockolet is a branch outlet fittings that provides integrally reinforced connections at 90 degree. It is forged fittings with high strength and low cost compared to conventional branch connection fittings. A105 carbon steel fittings are very common and prevalent among forged pipe fittings because its good quality and clear cost advantages.

Zizi is manufacturer and supplier of forged steel pipe fittings and we stores plenty of branch outlet fittings in best price and quality.

Feature of A105 Sockolet

Standard: MSS SP-97

Size:  4 x 1/2 Inch

Type: Sockolet

Pressure: 6000#

Material: ASTM A105

Heat Treatment: Normalized

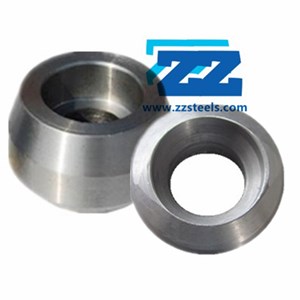

A105 sockolet

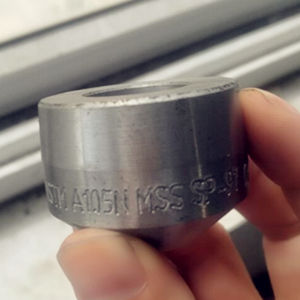

A105 sockolet

Sockolet A105 Shipping

Delivery Port: Qingdao

Lead Time: 12 days are ready

Package: A105 Sockolet is packed with plastic film, carton cases and wooden box.

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Sockolet Specification

Standard ASME/ANSI B16.11 MSS-SP-97
Products Weldolet, Threadolet, Sockolet, Nipolet, Latrolet, Elbolet.
Diameter Range 1/8 to 4 inch / DN6-DN100
Pressure Rate XS/3000# , SCH160 6000# A105 Sockolet, XXS/9000#
Stainless Steel ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310
Duplex Steel ASTM A182 F51, F53, F55
Carbon Steel ASTM A105 Sockolet , A350 LF2/LF3
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22 ,F91

Carbon Steel Socket Weight

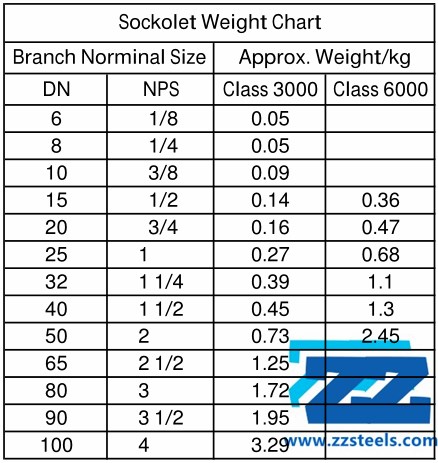

Carbon Steel Sockolet Weight

Carbon Steel Sockolet Weight

Inspection of Branch Outlet fittings

  • The inspection is operate according to MSS SP-97
  • Check the surface with hands and eyes.
  • Measure the dimensions of face of fitting, OD of fitting, socket wall, depth and cut hole diameter and check if they are in tolerance.
  • Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

Weldolet VS Sockolet

Weldolet is basic and the most popular type of of branch connection pipe fittings. Sockolet has similar shape to weldolet.

However, sockolet belongs to socket weld fittings and the dimension is available in 1/8” to 4” class 3000, 6000 and 9000, while weldolet has larger dimension ranges and is welded to pipes.

ASTM A105 Chemical Composition

C Mn P S Si
0.15 max 0.6-1.05 0.035 0.04 0.1 min

ASTM A105 Mechanical Properties

Tensile Strength Yield Strength Elongation
485  (Mpa) 250 (Mpa) 30  (%)
