ASTM A105N Sockolet 6000# MSS-SP-97

Forged Outlet Manufacturer

Stock of sockolet, threadolet and weldolet in pressure 3000#, 6000# and continuously supplies 3/4″ ASTM A105N Sockolet 6000# MSS-SP-97 for Singapore.

It is a type of self-reinforced branch fittings and used in small size diameter pipe branch.

It is similar to Weldolet but its branch connection is socket weld type. They both have a run end and a branch end. The run end connects to the larger diameter pipe, and the branch end connects to the smaller diameter pipe

ASTM A105N Sockolet Dimension

Size: 3/4 in

Pressure: 6000#

End Type: SW

Standard: MSS SP-97

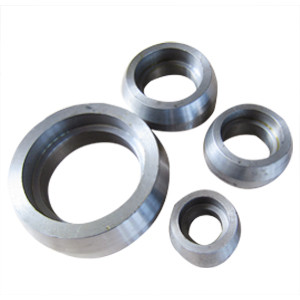

ASTM A105N Sockolet Dimensions

MSS SP-97 Forged Sockolet

Inspection

Inspecting Forged Sockolet according to MSS SP-97 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

ASTM A105N Chemical Composition

C	Mn	P	S	Si
0.15 max	0.6-1.05	0.035	0.04	0.1 min

ASTM A105N Mechanical Properties

Tensile Strength	Yield Strength	Elongation
485 (Mpa)	250 (Mpa)	30 (%)

Carbon Steel A105N Sockolet

Surface Treatment

All carbon steel forged pipe sockolets are normalized heat treatment and surfaced with oil before delivery.

Forged Sockolet Dimensions

Standard	ASME/ANSI B16.11 MSS-SP-97
Diameter Range	1/8 to 4 inch / DN6-DN100
Pressure Rate	XS, SCH160, XXS
Outlet Types	Weldolet, Threadolet and Sockolet
Stainless Steel	ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310
Duplex Steel	ASTM A182 F51, F53, F55
Carbon Steel	ASTM A105N, A350 LF2/LF3
Alloy Steel	ASTM A182 F1, F5, F9, F11, F12, F22 ,F91

2 Inch Forged Sockolet

Package

Packed 3/4 Inch ASTM A105N Sockolet into plastic bag and then put into carton.

ASTM A105N Forged Steel Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Uganda

Middle East: Saudi Arabia, Qatar, Israel, Egypt

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador

Oceania: Papua New Guinea, Australia, New Zealand

Europe: Greece, UK, Poland, Ukraine, France, Spain
