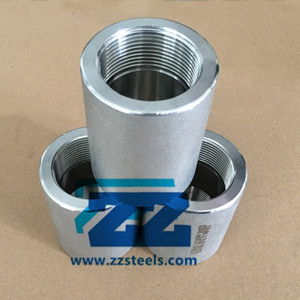

3000 LB Stainless Steel Coupling BSPP

316/316L Stainless Steel Pipe Fittings

3000 LB Stainless Steel Coupling BSPP has advantages of high accuracy in dimensions, good resistant to corrosive and pressure and obviously cost effective.

SS 316/316L forged fittings is known for their excellent rust resistance, toxic free and durable, it is largely used in many industrial pipe system with high pressure and temperature. As a professional manufacturer, BSPP stainless steel coupling that Zizi supplies have beautiful appearance, precision dimensions and high quality. In view of the good performance they are popular even with higher price than carbon steel pipe fittings.

Ordering 3000LB Stainless Steel Coupling

Standard: ASME B16.11

Diameter: 3”

Pressure: 3000LB

Material: ASTM A182 F316L

Quantity: 327 PCS

Specification of Threaded Coupling

Standard ASME B16.11, GB/T14383, SH3410, HG/T21634, JIS B2316, BS3799
Diameter 1/8″, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure 3000LB Stainless Steel Coupling, 6000LB, 9000LB
Threads NPT, BSPP, BSPT, PT, GI
3000LB Stainless Steel Coupling ASTM A182 F316/316L, F304/304L/304H, F317, F321, F310, F347
Carbon Steel ASTM A105N, A350 LF2/LF3,A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, F60
Copper Nickel Alloy UNS No. C70600 ( Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), C 71640, Monel 400, 404, 405, K500. B10, B30

How to Inspect a 3000 LB Stainless Steel Coupling

  1. Surface

Check the surface of pipe fittings with your hands and eyes to avoid flaws.

  1. Dimension

Measure the size of the OD., end to end, threads length of threaded couplings, make sure they are in tolerance.

  1. Marking

For example, “ Socket 3” BSPP 3000LB SS316L B16.11 NP957”. The marking should cover product name, diameter, pressure, thread type, material, standard and lot No..

  1. Threads

Test the threads with go/no go gauge.

  1. Material

Check the chemical composition of ASTM A182 F316L.

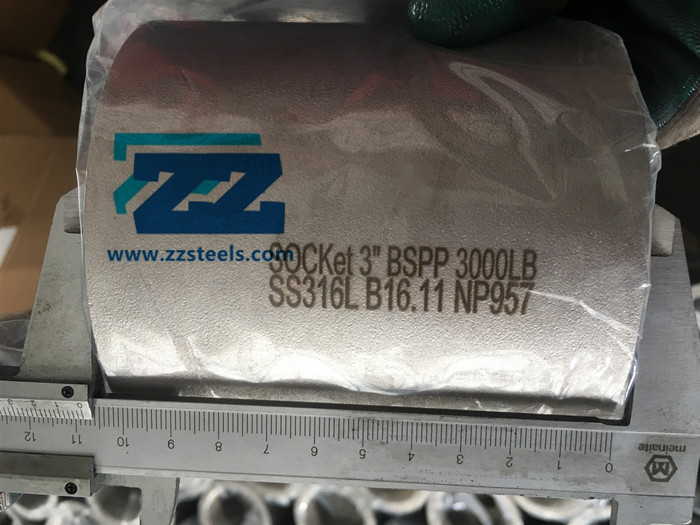

3" 3000lb coupling inspection

3″ 3000lb coupling inspection

Package of 3000 LB Stainless Steel Coupling

  • Anti rust oil
  • Plastic bag
  • Carton cases
  • Wooden box

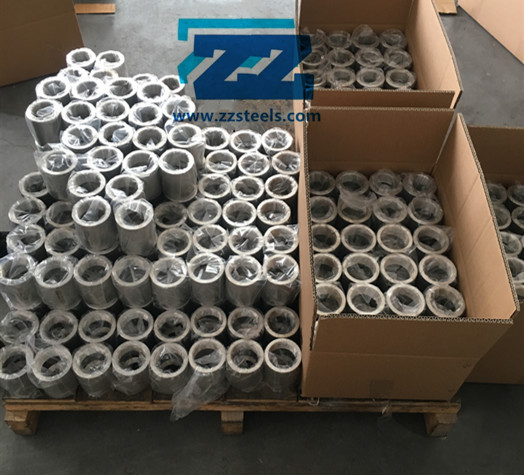

BSP stainless steel couping package

BSP stainless steel couping package

BSPP VS BSPT

Both BSPP and BSPT belong to BSP threads, but what do they mean? Do you know their differences?

BSPT—British Standard Pipe Taper. It is tapered threads as NPT thread but its angle cross the flanks of threads is 55 degrees. It is popular in Asia, especially in south east Asia.

BSPP— British Standard Pipe Parallel. It is more prevalent in UK, Europe, Australia and South Africa. This parallel thread uses a bonded seal ring to do the sealing.

What’s more, BSPT threads and BSPP threads cannot match.

BSPP VS BSPT

BSPP VS BSPT

ASTM A182 F316 Properties

Chemical Composition, %

C Mn Si P S Cr Mo Ni
0.035 2 1 0.045 0.03 16-18 2-3 10-14

Mechanical Properties

Tensile Strength Yield Strength Elongation
515 205 35
