18 Inch API 5L B LSAW Pipe
API 5L B LSAW PIPE
We are manufacturer of LSAW PIPE and providing 18 Inch Sch40 12M API 5L B LSAW Pipe for PDVSA.
It can be used as conveying linepipe for gas and liquid, or structural pipe in construction projects. One of its advantages is it can produce more thick wall thickness of pipes.
As China leading steel pipe manufacturer, we pay large attention on the quality, adopt top class materials and advanced production technology to produce the most competitive pipes.
18 Inch API 5L B Pipe Feature
Size: 18 Inch Sch40
Length: 12m
Type: LSAW
Material: API 5L B
What is LSAW Pipe?
The full name of LSAW Pipe is Longitudinally Submerged Arc Welding steel pipe, it has straiht welded seam on the surface. Usually the welded seam is one, but when the outside is larger than 914.4mm, it allows two straight welded seam for one pipe.
This pipe is widely used in onshore and offshore oil and gas pipelines requiring critical service, high performance and tight tolerances, low pressure liquid media or high pressure petroleum or natural gas line pipe, conveyance of flammable or nonflammable liquids, or as structural members in construction projects.

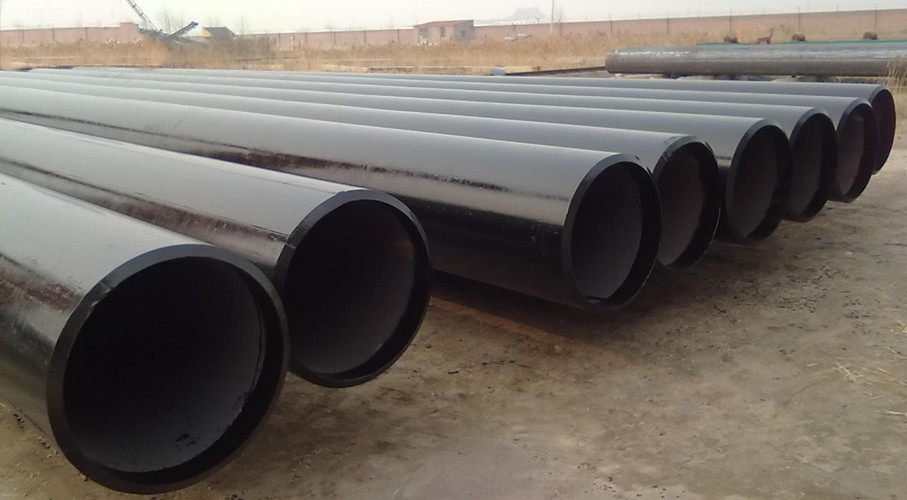

LSAW Pipes
Steel Pipe Supply Range
| Diameter | 1/2” to 60” |
|---|---|
| Wall Thickness | Schedule 20 to Sch XXS |
| Length | Single Random, Double Random, Cut Length |
| End | Plain End (PE), Beveled End (BE) |
| Surface | Anti rust oiled, Hot dip galvanized, Electro galvanized, Black Primer, 3PE, Protective Coatings, Epoxy Resin Coating |
Quality Assurance for Carbon Steel Pipe
Test for 18 Inch API 5L B Pipe
- Chemical Component Analysis
- Mechanical Properties
- Flattening Test
- Bending Test
- Impact Test
- Hydrostatic Test
- X-ray Test
- Size Inspection
API 5L B Chemical Composition
| API 5L B | C | Mn | P | S |
|---|---|---|---|---|
| SMLS | 0.28 | 1.2 | 0.3 | 0.3 |
| Welded | 0.26 | 1.2 | 0.3 | 0.3 |
API 5L B Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 415 | 240 | 20 |
Certificate
- CE, ISO, TEST REPORT, Stamp Mill Test
Third Party Inspection
- BV, SGS, LR, DNV, ABS
Package for 18 Inch API 5L B Pipe

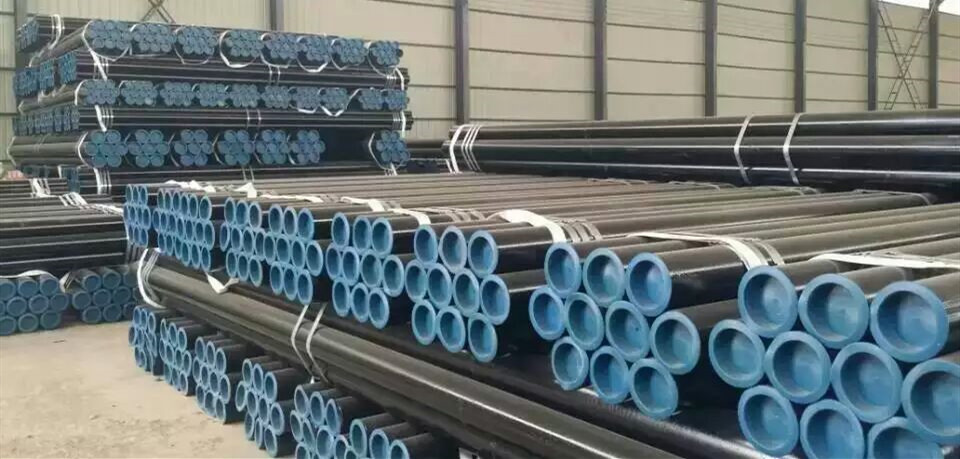

API 5L B Pipe Package
- Plastic caps at both end
- Bundle packing
- Two tags on each bundle
- Wrapped with waterproof paper
- Wooden cases or wooden pallets
- As customer requirements
