ASTM A105N WNRF Flange 150#
Carbon Steel Flange Price
Good price and quality from top class manufacturer & stockholder Zizi which supplies 1/2 Inch ASTM A105N WNRF Flange Sch 160 150# for South Africa.
Welding Neck flanges, available in all pressure ratings and sizes, are butt-welded to the end of the pipe, and are usually specified when service conditions are severe and excellent workmanship necessary. Since the inside diameter of the flange must match that of the pipe, the flange bore should be specified in ordering

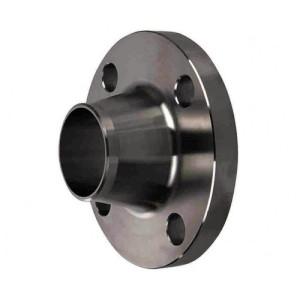

ASTM A105N WNRF Flange Dimensions
Size: 1/2 inch
Pressure: 150#
Seal Schedule: SCH 160
Standard: ASME B16.5
ASME B16.5 Forged Flanges
Inspection
Inspecting Carbon Steel Forged Pipe Flange according to ASME B16.5 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A105N Chemical Composition
C | Mn | Si | P | S |
---|---|---|---|---|
0.26 | 1.6 | 0.15-0.35 | 0.025 | 0.03 |
ASTM A105N Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
515 (Mpa) | 415 (Mpa) | 20 (%) |
Carbon Steel A105N Pipe Flanges
Surface Treatment
All carbon steel forged flanges are normalized heat treatment before delivery.
Flange Dimensions Chart
Standard | ASME B16.5, API 5A |
---|---|
Diameter Range | 1/2 to 24 inch / DN15-DN600 |
Pressure Rate | Class 150, 300, 600, 900, 1500, 2500 |
Product | Slip On Flange, Threaded Flange, Socket Weld Flange, Blind Flange, Lap Joint Flange, Weld Neck Flange. |
Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
Duplex Steel | ASTM A182 F51, F53, F55 |
Carbon Steel | ASTM A105N, A350 LF2/LF3. A694 F60, F65, F70, F52 |
Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22 ,F91 |
1/2 Inch Pipe Flange Fittings
Package
Packed 1/2 Inch ASTM A105N WNRF Flanges into wooden case.
China Flanges and Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia, Philippines, Kazakhstan.
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Tanzania, South Africa.
Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman, Yemen, Jordan, Lebanon.
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia, Argentina, Paraguay
Oceania: Papua New Guinea, Australia, New Zealand, Solomon Islands, Fiji.
Europe: Greece, UK, Poland, Ukraine, France, Spain, Portugal, Norway, Sweden
