1” Socket Weld Tee Specification

Size: 1” Class 3000 Socket Weld Tee

Type: Forged Fittings

Material: ASTM A105

Standard: ASME B16.11

Heat Treatment: Normalized

Certificate: CE, ISO, TEST REPORT

Lead Time: Usually With 15 Days

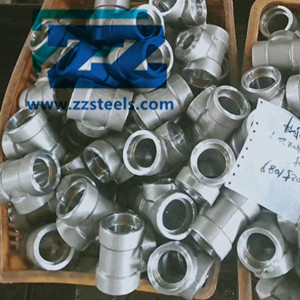

Socket Weld Straight Tee

1” Class 3000 socket weld tee is made of carbon steel ASTM A105 according ASME B16.11. They are offered with best price and quality, ISO and material certification are available upon request.

Socket weld straight tee, also known as socket weld equal tee, has three same sizes end, and all ends are connected by socket welding. It offers a 90 degree branch for the main pipe. The manufacture technique is forging, the dimension will specified in ASME B16.11, American standard for forged socket weld and threaded fittings. Forged socket weld fittings have advantages of good mechanical properties, good looking, easy welding and strong connection.

Dimensions of Socket Weld Equal Tee

 Package of 1 Inch Socket Weld Tee

Pipe fittings within 4 inch will be packed into wooden cases. For packing 1 inch socket weld tee, we use

• Anti-rust oil
• Plastic Film
• Carton Box
• Label
• Wooden Cases

The label on the carton box covers information of item picture, name, type, size, material and quantity. The label on wooden cases includes the shipping information.

Quality Control of Socket Weld Fittings A105

Visual Check Surface

Marking, Appearance

Measure Dimensions

Nominal Size, Socket Bore Dia., Socket Wall Thickness, Deoth of Socket, Center to Bottom of Socket.

Tolerance

Third Party Inspection

BV, SGS, LR, DNV, ABS and stamp mill test certificate.

Supply Range for Forged Steel Pipe Fittings

Standard	ASME B16.11, BS 3799
Diameter	1/8″, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure	3000LB, 6000LB, 9000LB Socket Weld Tee
Type	Socket Weld and Threaded Fittings
Stainless Steel	ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347
Carbon Steel	ASTM/ ASME A 105 1″ Socket Weld Tee, ASTM/ ASME A 350 LF 2, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel	ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F23, F91
Copper Nickel Alloy	NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276, C 70600, C71500
