Stainless Steel Forged Threaded Fitting

Zizi produces Stainless Steel Threaded Tee that conforming to international levels with highest quality raw material and equipment. It is known for the excellent corrosion resistance, long service life and easy installation.

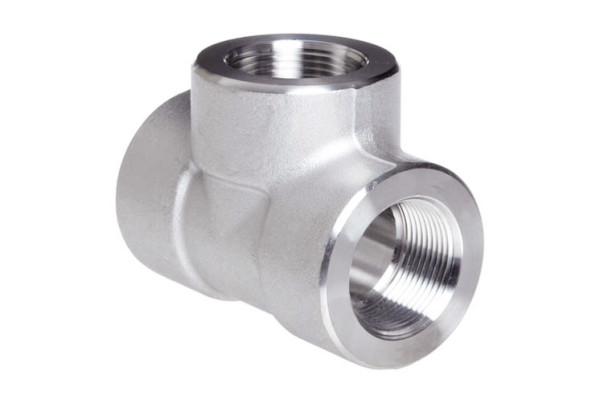

Forged Screwed Equal Tee

The dimension and material are necessary when order a pipe fitting, the details are specified in many standards.

For stainless steel screwed tees, the dimension standard is ASME B16.11 and the material is ASTM A182.

• ASME B16.11 covers diameters, pressure, tolerance and testing. The diameter should complied with the pipes it matches. The working pressure will be limited by the material type and the thickness.
• ASTM A182 covers chemical composition and mechanical properties of materials.

Quality inspections are conducted under the guidance of these standards.

Inspection of Stainless Steel Threaded Tee

In order to supply you top class products, we take every inspection seriously.

1. Measure the center to end ( A ).
2. Check the outside diameter ( D ).
3. Test the stainless steel parameters by OES.
4. Inspect the thread by Go/no go gauge.

ASME B16.11 Threaded Fittings Dimensions

Standard	ASME B16.11
Diameter	1/8 to 4 inch / DN6 to DN100
Pressure	3000 LB, 6000 LB, 9000 LB
Thread	NPT, BSPP, BSPT
Duplex Stainless Steel	ASTM A182 F51, F53, F55
Stainless Steel	ASTM A182 F304, 304H, 309, 310, F316, 317L, F321, F347, 904L
Carbon Steel	ASTM A105, A350 LF2/LF3, A694 F52, F60, F65, F70
Alloy Steel	ASTM A182 F1, F5, F9, F11, F12, F22, F91
Product	90 Degree and 45 Degree Elbow, Half and Full Coupling, Threaded Cap, Union, Plug, Bushing, Cross, Equal and Reducing Tee

Forged Tees and Elbows Application

Forged pipe elbows and tees have good performance that can meet the demands of various industries.

• Heating
• Oil and Gas
• Smelting Plant
• Food Processing
• Chemical Processing
• Water Supply Systems
