Industrial Steel Pipe Fittings

We are manufacturer, stockholder, and exporter of ASTM A860 WPHY 60 Fittings which are known for attractive price and great service.

ASTM A860 WPHY 60 is a material of high-strength low-alloy (HSLA) and generally used at high-pressure conditions.

What is High Strength Low Alloy?

High-strength low-alloy steel is a type of alloy steel that provides better mechanical properties or greater resistance to corrosion than normal carbon steel. The amount of alloy content are usually less than 3%. One manufacture rule of HSLA steel is taking advantage of  less alloy elements to obtain higher comprehensive mechanical properties. And vary from other steels, it is not made to meet a specific chemical composition but rather to specific mechanical properties.

High Strength Low Alloy Steel Pipe Fittings is the ideal product for high pressure application with low cost.

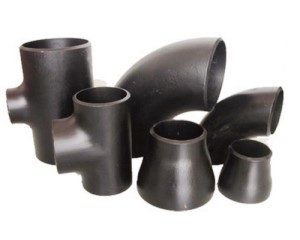

ASTM A860 WHPY 60 Fittings Dimensions

Standard	ASME B16.9 / MSS-SP-75
Size	DN15 to DN48 / 1/2” to 48”
Thickness	Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS
Grade	WPHY 42, 46, 52, 60, 65, and 70.
Fittings Types	90 Degree Elbow, 45 Degree Elbow, Straight Tee, Reducing Tee, Pipe Cap,Concentric Reducer, Eccentric Reducer, Pipe Bend.

Marking

• The Manufacturer’s symbol or name
• Specification number (year date not needed),
• Grade symbol,
• Size and nominal wall thickness or schedule,
• Heat code identification.
• In addition, quench and tempered fittings shall be marked with the symbol QT.

A860 WPHY 60 Chemical Composition %

C	Mn	P	S	Si	Ni	Cr	Mo
0.2	1-1.5	0.03	0.01	0.15-0.4	0.5	0.3	0.25

A860 WPHY 60 Mechanical Properties

Tensile Strength	Yield Strength	Elongation
515-690 MPa	415 MPa	28 %

What is ASTM A860?

ASTM A860 is the specification for Wrought High-Strength Ferritic Steel Butt-Welding Fittings. And could be seamless or electric fusion-welded construction covered by ASME B16.9 and MSS-SP-75. A860 WPHY 60 Fittings are used in high-pressure gas and oil transmission and distribution systems.

We are familiar with ASME B16.9 fitting which is wrought steel butt-welding fittings. And MSS-SP-75 Pipe Fittings are high test wrought butt-welding carbon and low alloy steel fittings for high pressure gas and oil system.
