ASME B16.9 Fittings Manufacturer
Zizi Engineering is manufacturer of Butt Weld Fittings and supplies to many countries as Singapore, Australia, Vietnam, Ghana, Nigeria, Peru. Customers are always satisfied with us because high quality, competitive price and fast delivery. Especially the service of each step.
A234 Pipe Fittings Dimensions
Diameter: DN 15-1200/ NPS 1/2″-48″
Thickness: SCH10S, SCH20, STD, SCH40, XS, SCH80. Sch120, Sch160, XXS
End: BE (Bevel End) and PE ( Plain End)
Technic: Seamless and Welded
Material of Butt Weld Fittings
Stainless Steel: ASTM A403 WP316/316L, WP304/304L,
Carbon steel: ASME A234 WPB,WPHY42/46/65, ASTM A420 WPL3/6
Alloy steel: ASTMA234 WP1/WP5/WP9/ WP11/12/22/91
What is ASME B16.9
This Standard ASME B16.9 covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought Butt Welding Fittings in sizes NPS 1⁄2 through NPS 48 (DN 15 through DN 1200).
Pipe Fittings can also be made to special dimensions, sizes and shapes by agreement between the manufacturer and the purchaser.

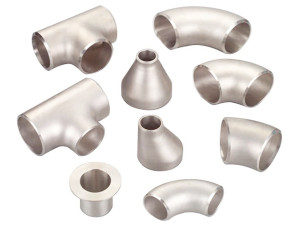

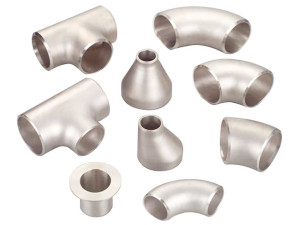

Butt Weld Fittings
They are including Steel Elbow, Equal Tee, Reducing Tee, Pipe Cap, Eccentric Reducer, Concentric Reducer and Stub End, which are specified by nominal pipe size and schedule. Usually using seamless or welded pipe as the starting material and get the shape of elbows, tees and reducers etc by forging (through multiple process) . The Schedule 10 to Schedule 160 is matching with the pipe schedule.

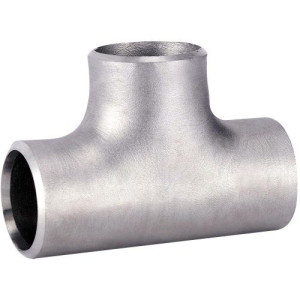

Butt Weld Tee
There are two types that equal tee and reducing tee.

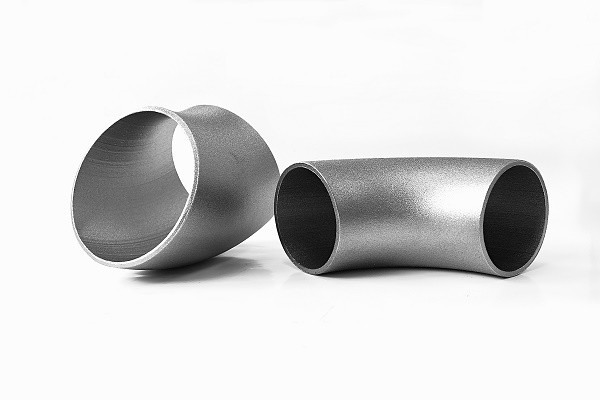

Butt Weld Elbow
Their role is to change the direction of the flow.
Elbow Types
LR is Long radius which mean R=1.5D
SR is short radius which mean R=1D
Elbow Degree
30 Degree, 45 Degree, 60 Degree, 90 Degree, 180 Degree

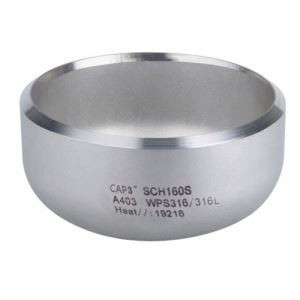

Butt Weld Cap
Stainless Steel Butt Weld Cap act as a seal to the end of a pipe. Their primary function is to waterproof piping system in addition to resisting chemicals, moisture and weather.
The Metal Pipe Cap fits on the outer diameter (O.D.) of the pipe.
For Example – The 6″ Pipe Cap fits over a 6.625″ Pipe. You can refer to below.
Cap Size/Inch | Pipe Size/Inch |
---|---|
2 | 2.388 |
3 | 3.5 |
4 | 4.5 |
5 | 5.563 |
6 | 6.625 |
8 | 8.625 |
10 | 10.75 |
12 | 12.75 |
14 | 14 |
16 | 16 |
18 | 18 |
20 | 20 |
22 | 22 |
24 | 24 |
26 | 26 |
28 | 28 |
30 | 30 |
32 | 32 |
36 | 36 |
42 | 42 |

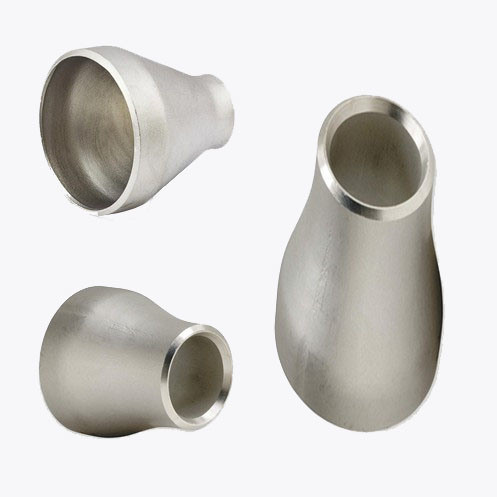

Butt Weld Reducer
They are always connecting large pipe to smaller pipe by welding. There are types of concentric reducer and eccentric reducer.

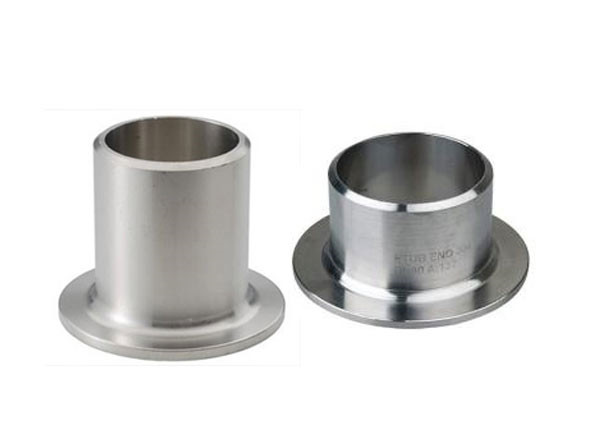

Butt Weld Stub End
Stub End is customarily used with lap joint flanges, the stub end forming the face of the flange.
ASME B16.9 Pipe Fittings Applications
- Plumbing
- Heating
- Power Plant
- Structural Pipe
- Chemical industry
- Paper Pulp Industry
- Oil and Gas Pipeline
- Water Supply Systems
- Food processing industry
